M007-095 CLEARVIEWTM UV C RADIOMETER

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The ClearView™ uses an extremely stable solid-state photodiode detector

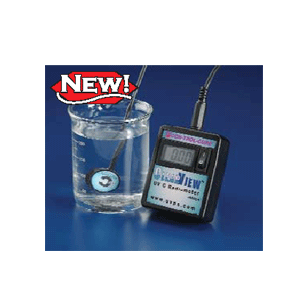

CLEARVIEWTM UV C RADIOMETER

The ClearView™ UV-C Radiometer is designed to be a simple, inexpensive measurement device which delivers precise, instantaneous irradiance readings. Engineered to be extremely portable and versatile, the ClearView™ is optimal for assuring germicidal UV-C (220-280nm) lamp performance both in and out of water. The ClearView™ uses an extremely stable solid-state photodiode detector with a low temperature coefficient to isolate the UV-C radiation. It does not allow any out-of-band signal to contaminate the reading. The UV-C probe comes standard with a 10 ft cable and is hermetically enclosed for submersion to 6 ft. Calibrated using a NIST traceable standard.

SPECIFICATIONS:
● Response Range 220-280nm (UV-C)
● Irradiance Range 0 - 20 mW/cm2
● Resolution 10μW/cm2
● Conv. Rate 2.5 readings/second
● Oper.Temp 60°F to 95°F (15°C - 35° C)
● Dimensions - Radiometer 3"L x 2.5"W x 1.05"D (76 mm x 64 mm x 27 mm)
● Dimensions - Remote Probe 0.87"D x 0.4"H (22 mm x 10 mm) head
● Weight - Radiometer 3.7 oz (105 g) including battery, remote probe 1.3 oz (37 g)
● Power Source 9V battery (not included in package)

Part Number Description Units
M007-095 CLEARVIEWTM UV C RADIOMETER EACH
