It provides a safe, reliable measurement solution for UV-web and other applications.

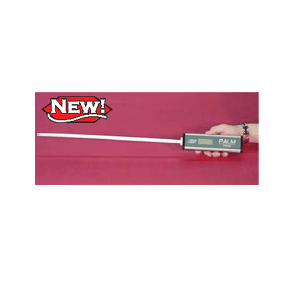

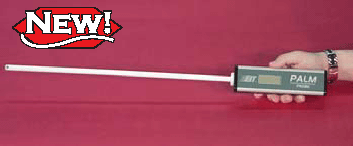

PALM PROBETM RADIOMETERS

The PALM (P)roduction (A)mbient (L)ight (M)easurement ProbeTM UV Radiometer is a process control instrument designed for measuring UV energy
within inaccessible environments. It provides a safe, reliable measurement solution for UV-web and other applications.
The PALM ProbeTM has an extremely wide dynamic range allowing it to measure very low (i.e. fluorescent bulbs) and very high (i.e. powerful UV curing systems) levels of UV. As the harsh physical conditions inside a UV curing chamber include extreme temperature variations, the PALM Probe™ is designed to withstand these conditions as well as protect the operator and instrument from damage or electrical shock. The light guide is constructed of steel alloy and coated with a non-conductive ceramic coating to insulate and protect the user from accidental shock. It is further isolated from the instrument body by a nonconductive Delrin block.

An input aperture at the tip of the PALM ProbeTM light guide detects all wavelengths of ultraviolet, visible and infrared radiation. The light is directed down the light guide to the base of the instrument where a UV filter passes the UV light of interest to the photodetector. The LCD display toggles between watts, joules, and seconds during data collection and at the end of data collection.

ELECTRICAL SPECIFICATIONS:

● UV Range: 100μW/cm2-10W/cm2
● Spectral Response: UV-A 320-390nm, UV-B 280-320nm, UV-V 395-445nm
● Instrument Body Operating Temperature: 0°C - 70°C
● Light Guide Temperature Resistance: 750°F on a continuous basis; much higher for measurement length exposures
● Batteries: 2 “AA” alkaline batteries

MECHANICAL SPECIFICATIONS:

● Overall Length: 25.75” (65.4 cm)
● Probe Body Length: 7.5” (19.0 cm)
● Light Guide Length: 18.25” (46.4 cm)
● Weight: 21 oz (596 g)

Part Number Description Units
M007-096A PALM PROBETM UV-A EACH
M007-096B PALM PROBETM UV-B EACH
M007-096V PALM PROBETM UV-V EACH
