M007-054 SOLAR SERIESTM RADIOMETERS

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

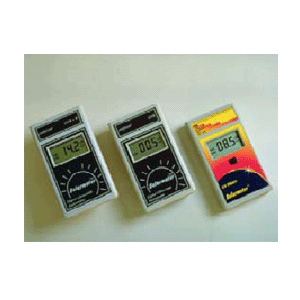

3 palm-sized precision instruments measure UV light for a variety of applications.
SOLAR SERIESTM RADIOMETERS

3 palm-sized precision instruments measure UV light for a variety of applications. Each unit incorporates a semiconductor UV sensor consisting of a GaAsP photodiode chip and UVfilter. The sensor is completely insensitive to visible light longer than 400nm and IR radiation. Solar 5.0 measures total UV-A and UV-B (280-400nm) and is ideal for evaluating UV lamp intensity during its life span. Solar 6.0 measures UV-B (280-320nm) and is ideal for determining lamp UV-B intensity and acrylic transmission. Solar 6.5 measures environmental (outdoor) solar intensity (290-400nm, peaking between 297-310nm) and provides LCD readout in mW/m2 SUV/25 (the WMO international standard for displaying erythemally weighted irradiance on a 1-15 scale).

Point the meter at the UV light source (leakage), record reading, and compare to chart to determine the number of hours of persmissible UV exposure. Calibrated to accuracy standards referenced to NIST.

SPECIFICATIONS:
● Irrad. Range: 0-199.9mW/cm2 Total UV
● Resolution: 0.1mW/cm2
● Conv. Rate: 3.0 Readings/Second
● Operating Temperature: 32°F to 120°F
● Accuracy: +/- 5%
● Dimensions: 4.2"L x 2.4"W x .9"D
● Weight: 4.5 oz
● Power Source: 9V DC Battery

Part Number Description Units
M007-054 SOLAR 5.0 RADIOMETER EACH
M007-073 SOLAR 6.0 RADIOMETER EACH
M007-072 SOLAR 6.5 RADIOMETER EACH
