M007-074 MICROCURETM RADIOMETERS

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

In web press applications, MicroCure™ passes through a UV curing station
MICROCURETM RADIOMETERS

Directly affix this ultra-compact electro-optic device to almost any workpiece to accurately measure UV dosage under normal operating conditions. With a UV data collection instrument measuring only 1.30" by 1.0", the MicroCure™ is ideal for inaccessible curing environments such as web presses, bottle printers, container decorators, and compact disc coaters.
In web press applications, MicroCure™ passes through a UV curing station and is removed prior to reaching the print station location. Equipped with an adhesive-backed transport pad and pocket, the MicroCure™ adheres directly to any item including a web traveling vertically and/or while traveling at high speeds. In fact, MicroCure's™ high sampling rate of 2000 samples/second ensures that measurements taken at rapid web
speeds will be accurate. Due to the instrument's extremely small surface area and very low profile (only 0.25" high), MicroCure™ can actually travel around idler rollers. For applications not requiring adhesion, the unit can be inserted directly into a can, cup or tube. Compact disc manufacturers who screen and/or coat CDs can put MicroCure™ into one of the CD "nests" when checking UV dosage against production parameters.

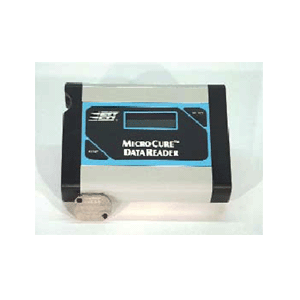

MicroCure™ is easy to use. There are no wires or connectors. Since it's always "on", there are no switches or buttons to push. Insert the unit into the DataReader and simply push the "Select" button to check the UV dosage. Available in 2 models: Standard 2W/cm2 (90% intensity) or 10W/cm2 (for heavy-duty microwave lamps).

Part Number Description Units
M007-074 MICROCURE™ WITH DATA READER - 2W/cm² EACH
M007-074A MICROCURE™ WITH DATA READER - 10W/cm² EACH
M007-084 MICROCURE™ EACH
