LAMPLINE UV INTENSITY MONITOR
The state-of-the-art LampLine UV Intensity Monitors
are electro-optic instruments designed for continuous on-line UV lamp monitoring.
With continuous monitoring, a UV lamp's relative UV output is used to verify
ongoing lamp performance. In each system, the LampLine UV Sensors (sold
separately) are mounted permanently looking at the UV source.
With any LampLine monitoring system, the principle is the same. After installation,
the user calibrates their system(s). When thelamp(s) are new and the irradiator(s)
are clean, each monitor is set to 100%. The user then determines a Lower
Limit percentage for the alarms and sets those. As a lamp degrades over
time, the signal from the sensor is translated into a percentage of your
original intensity setting as calibrated.

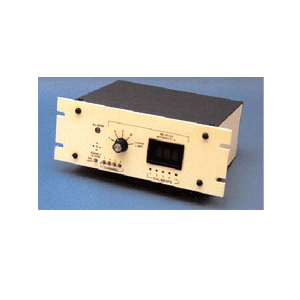

LampLine
Multi-Channel Monitor:
This top of the line UV lamp monitoring system can monitor up to 4
lamps at a time on-line. However, it is cascadable, meaning more than
4 lamps may be monitored by adding additional Monitors, each interconnected
so that any lamp dropping below threshold will set off an alarm. The
front display shows the percentage of original output for any lamp
being monitored.
LampLine Panel
Mount:
This online monitoring system can be retrofitted to
existing machinery or incorporated directly into equipment design.
Each small monitor can be frontpanel mounted so that the percentage
of original output displayed on its LED can be constantly viewed and
assessed by the user.
LampLine DIN
Module:
The intent of this on-line system is to be able to
monitor a multitude of lamps by snapping individual modules onto a
rail which is normally mounted in the rear or side of the equipment.
This system is available for use in integrated
monitoring and control systems containing analog signal processing
and shared display capability. DIN Modules do NOT have a display.
Each rail mounted module allows for monitoring of a single UV lamp.
LampLine Sensors:
The sensors work with mercury vapor, electrodeless,
deuterium, or any lamps which produce UV light. Sensors are ordered
individually and are available in 250-260nm, 280-320nm, 320-390nm,
or 395-445nm spectral responses.
“Lamp On” detector indicates UV system is powered and lamp is running.
Each sensor comes with a 10' cable (custom lengths are available).
Part Number
Description
Units
M007-067A
LAMPLINE MULTI-CHANNEL MONITOR
EACH
M007-066A
LAMPLINE PANEL MOUNT
EACH
M007-068A
LAMPLINE DIN MODULE
EACH
M007-085
LAMPLINE SENSOR COMPACT
EACH
M007-086
LAMPLINE SENSOR “LAMP ON”
EACH
