N008-001 DEPTH OF CURE COMPARATOR™

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

A problem which exists for the user of UV curable materials is the degree of cure to which a coating formulation has achieved.
DEPTH OF CURE COMPARATOR™

A problem which exists for the user of UV curable materials is the degree of cure to which a coating formulation has achieved. The CON-TROL-CURE® Depth of Cure Comparator™ provides an easy method to identify the latitude of curability or curing range of the
coating. The simplicity and the low cost of this item will allow for a fast evaluation of the coating or ink as frequently as necessary.

The Depth of Cure Comparator™ is designed to evaluate the parameters of a coating in the actual manufacturing environment. As a production tool, it can help identify what is causing a curing problem, as well as establish the specific curing variables (i.e.
process speed, UV light intensity, applied coating thickness). With these process variables identified on the comparator, the ability to establish repeatable manufacturing methods is then easy.

FEATURES:
● Compares the coatings performance on the actual curing system
● Enables the removal of cured films for additional testing and record keeping
● Can be used as a quality control tool for checking incoming curable material
● Effectively determines the color opacity level
● Effectively determines optimum conveyor speeds

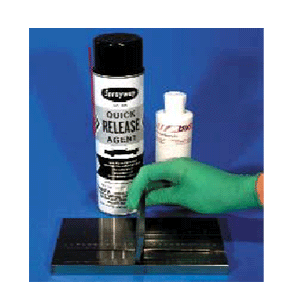

ACCESSORIES SUPPLIED WITH DEPTH OF CURE COMPARATOR™:
● Release Agent: Quick Release N008-018 (prevents adhesion to the Comparator)
● Magnetic End Tap (prevents coating run-off)
● Precision Scraper (levels coating)
● Coating Stripper: Bond Breaker N008-017 (removes cured ink or coatings)

Part Number Description Units
N008-001 DEPTH OF CURE COMPARATORTM EACH

BOND BREAKER

HD Bond Breaker is a strong chemical formulation designed to remove unwanted or incorrectly cured inks, coatings or adhesives from the surface of many different fully cured materials. Excellent at correcting mistakes, cleaning cured or dried ink in pumps, and for cleaning glass and metal. Not intended for vinyl and certain plastic substrates. As it can irritate the skin and eyes, users of this product must wear appropriate hand and eye protection when using HD Bond Breaker. Available in 8 oz or 1 gallon containers.

Part Number Description Units
N008-017 HD BOND BREAKER 8 OZ
N008-021 HD BOND BREAKER GALLON
N008-018 QUICK RELEASE SOLVENT 14 OZ
