N008-020 UV FLEXO HAND PROOFING TOOL

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Finally, a quick and precise way to reliably match PMS and custom colors for UV Flexo

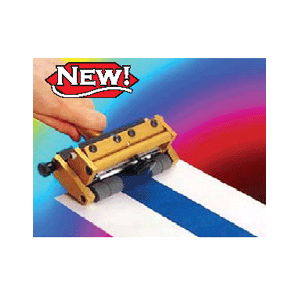

UV FLEXO HAND PROOFING TOOL

Finally, a quick and precise way to reliably match PMS and custom colors for UV Flexo, and Primographic inks off-press. With the UV Flexo Hand Proofer, you can go to press with an
anilox/ink combination that delivers the precise color you need. Commercially compatible color proofing for both customer color approval, and spectraphotometer readings.

Fabricated and machined of heavy-duty aircraft quality aluminum, with all parts corrosion resistant anodized. Though compatible with solvent based systems, the clean-up window is very short. The easy take down design allows for quick and easy changing of the engraved anilox rolls. The anilox rolls are standard engraved rolls, commercially available from Pamarco. Precision ball bearings float both anilox and print roll for smooth, chatter free drawdowns. The Doctor Blade loads the celIs of the anilox rolls and meters the ink to a repeatable ink film thickness. Doctor Blade tension is adjustable and reproducible.

Part Number Description Units
N008-020 UV HAND PROOFER EACH
N008-024 DOCTOR BLADE EACH
