N008-011 BLADE APPLICATOR GAUGE

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The Blade Applicator Gauge combines the accuracy of a "bird" type applicator with the ease of thumbscrew adjustability.

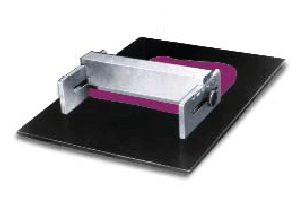

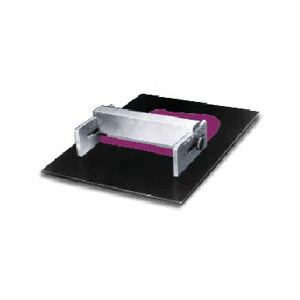

BLADE APPLICATOR GAUGE

The Blade Applicator Gauge combines the accuracy of a "bird" type applicator with the ease of thumbscrew adjustability. It is specially designed to provide precise test samples of inks, paints, coatings and adhesives. The shape of the applicator blade is not a sharp knife edge, but a flat area. Through a shearing action only half the liquid is deposited on the test sample. The applicator lays down a wet film thickness which is nominally one-half the gap clearance.

To operate, loosen each knob, slide the calibrated plate to the desired gap setting, and retighten the knobs. Drawing the applicator across a pool of coating liquid allows the precise gap at the blade to produce a wet film of the required thickness.

Part Number Blade Width Gap Clearance Coating Thicknesses
N008-011 4" 0-10 MILS 0-5 MILS
N008-014 8" 0-10 MILS 0-5 MILS
N008-013 4" 0-50 MILS 0-25 MILS
N008-012 8" 0-50 MILS 0-25 MILS
