A001-052A UV FLOOD CURING SYSTEMS CURE ZONE™ SERIES

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

These highly affordable Cure Zone™ units are excellent entry-level systems when making the transition to UV curing.

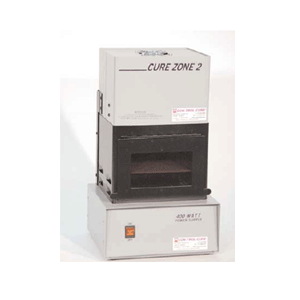

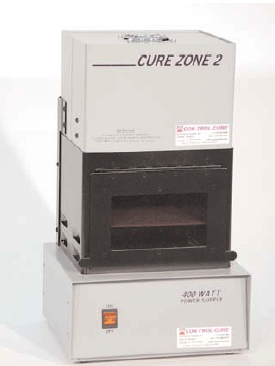

UV FLOOD CURING SYSTEMS CURE ZONE™ SERIES
These highly affordable Cure Zone™ units are excellent entry-level systems when making the transition to UV curing. With an 8” x 8” cure area, and 80mW/cm2 output at 365nm, each Cure Zone™ is designed for applications involving large assemblies or batch processing of smaller parts. Each Cure Zone™ and Cure Zone™ 2 can be used in automated or manual operations. Cool UV input ideal for heat-sensitive materials.

Such budget-conscious technology allows the user to either add the Cure Zone™ to an existing UV production facility as a lab unit, or experiment with UV applications for the first time.


SPECIFICATIONS - CURE ZONE™:

● Cure Area: 8” x 8” (20 cm x 20 cm)
● UV Output: 80mW/cm2 @ 365nm
● Power Requirements: 90-130V AC, 50/60Hz or 180-264V AC, 50/60Hz
● Power Supply: 400W solid state; 11.5"H x 10.0"W x 3.5"D (29.2 cm x 25.4 cm x 8.9 cm)
● Reflector Housing Dimensions: 9.5"H x 8.25"W x 7.25"D (24.1 cm x 21.0 cm x 18.4 cm)
● Weight: 22 lbs (10 kg)
● Thermally-controlled fan in reflector housing
● Height-adjustable work surface
● Hinged door access shield/short-wave UV filter reduction
SPECIFICATIONS - CURE ZONE™ 2:
● Cure Area: 8” x 8” (20 cm x 20 cm)
● UV Output: 80mW/cm2 @ 365nm
● Power Requirements: 120V AC, 60 Hz
● Power Supply: 400W transformer; 11.5”H x 10.0”W x 5"D (29.2 cm x 25.4 cm x 12.7 cm)
● Reflector Housing Dimensions; 9.5"H x 8.25"W x 7.25"D (24.1 cm x 21.0 cm x 18.4 cm)
● Weight: 36 lbs (16.4 kg)
● Fixed fan speed in reflector housing
● Height-adjustable work surface
● Slide-out access shield/short-wave UV filter reduction

Part Number Description Units
A001-052A CURE ZONE™ 110V EACH
A001-052B CURE ZONE™ 220V EACH
A001-051 CURE ZONE™ 2 EACH
