A143-002 UV CURING CHAMBER 365NM

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The compact and low cost UV Curing Chamber 365nm features microprocessor technology

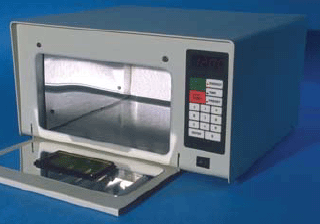

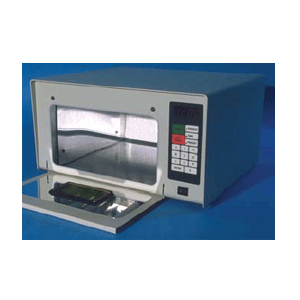

UV CURING CHAMBER 365NM

The compact and low cost UV Curing Chamber 365nm features microprocessor technology and a unique photo-feedback system which measures and controls UV output and ensures maximum energy efficiency. The end result is the freedom to control accuracy on a repeatable, reliable basis.

Measuring only 8.75" x 13.75" x 15.75", the 5 lamp UV Curing Chamber 365nm is smaller and therefore takes up less shelf space than any other on the market. It provides simple preset manual controls via a touch responsive keypad. The UV Curing Chamber 365nm is easy to maintain, as well. Factory calibrated, 115V/60Hz. Also available in 254nm model.

EXTERIOR DIMENSIONS: INTERIOR CHAMBER DIMENSIONS:
Height: 8.75" (22.2 cm) Height: 5" (12.7 cm)
Depth: 13.75" (34.9 cm) Depth: 11.81" (30 cm)
Width: 15.75" (40.0 cm) Width: 9.84" (25.4 cm)

FEATURES:
● Microprocessor Controlled/ UV Sensor Feedback System ● Internal Safety Interlock
● Multiple Set Functions:
    Preset UV Energy Exposure
    Preset UV Time Energy
    You set UV Energy Exposure
    You set UV Time Exposure
● Large LED Readout
● Tactile Membrane Switch Keypad
● UV Blocking Viewing Window
● Large Interior UV Exposure Chamber
● Dual Safety Fused
● Maximum UV Energy Setting of 999,900 mJ/cm2 ● Removable Power Cord
● Maximum UV Time Setting of 999.9 minutes
  ( this equates to 20mJ/cm2 in 400 seconds)
● Laydown Type Door

NOTE:
THIS LOW INTENSITY CURING CHAMBER IS NOT RECOMMENDED FOR CURING PIGMENTED INKS.

Part Number Description Units
A143-002 UV CHAMBER 365NM EACH
