CON-TROL-CURE® PORTABLE
2” CURING SYSTEM

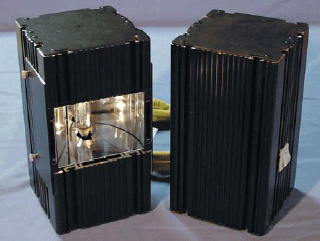

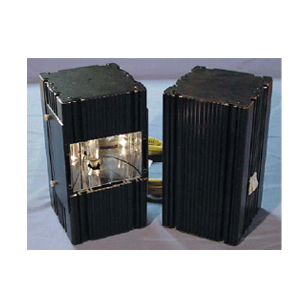

UV Process Supply proudly offers the CON-TROL-CURE® Portable 2” UV Curing
System: a detached 2” curing lamp connected to the power supply by a 6’
quick-disconnect power cable.
The system is designed for color matching, lab work, in-house prototype
work, on-site demonstrations, and as a starter unit for those interested
in learning more about UV clear coating, adhesives, casting/potting, and
conformal coatings. It offers users the opportunity to work on products
via either hands-on production or R&D on their
own equipment. Results of tests can be immediately translated to production
system requirements.
This 110V unit delivers up to 200W/in of power
over a 365nm broad band range. The 2” effective curing area emits focused
light for use with quick curing, and can be positioned to emit defocused
light for use with 3-D objects. It can be handheld without the light shield
for scanning large areas. Important: The use of goggles is recommended as
a safety precaution.
Economical, compact, and easy to use, the Portable 2" UV Curing System
weighs 24.5 lbs (power supply: 17.5 lbs, lamp: 7 lbs) and each component
measures only 5.25" H x 9.5" W x 5.25" D. The 110V unit delivers
power up to 200 WPI over a 365nm broadband range. The system features a
simple on/off switch. Custom extended power cables are available by special
order.
STANDARD FEATURES:
● 200W/in nominal output
● Handheld portability
● Compact design ideal for use within confined environments
● Plugs into a standard 110V outlet
● Low-cost design ideal for repairs, prototype work,
R&D, etc.
Part Number
Description
Units
A012-025
2” PORTABLE CURING SYSTEM
EACH
