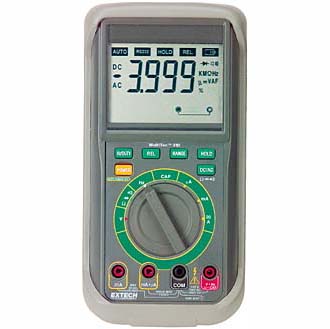

EHMT310 Digital MultiMeter

제조사 : Davis
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Features
  • Active Display — Oversized 4000 count LCD with display for test lead connection, blown fuse and power warnings
  • PC Interface — Optional Windows® compatible software for storing and viewing data onto a computer
  • Features Relative, Data Hold and Auto Power Off
  • True RMS — Model EHMT330 with TRMS for accurate measurements in the presence of distortion or harmonics
  • Advanced Functions — Models available with Capacitance, Frequency, Temperature and Duty Cycle
  • Temperature — Wide °C/F temperature measurements (Models EHMT320 & EHMT330)
  • Includes test leads with alligator clips, 9V battery, protective holster and temperature probe (Models EHMT320 & EHMT330)
Applications
  • Large display, multiple connection and voltage warnings, plus PC interface are ideal for training and technical schools
  • Capacitance and diode functions useful for appliance installation and repair technicians
  • DC functions, Duty Cycle and Capacitance for automotive & marine applications
SPECIFICATIONS

EHMT310

EHMT320

EHMT330

Basic DC Volt Accuracy

0.5%

0.3%

0.1%

AC Amp Range

0.1μA to 20A

0.1μA to 20A

0.1μA to 20A (trms)

DC Amp Range

0.1μA to 20A

0.1μA to 20A

0.1μA to 20A

AC Volt Range

0.1mV to 700V

0.1mV to 700V

0.1mV to 700V (trms)

DC Volt Range

0.1mV to 1000V

0.1mV to 1000V

0.1mV to 1000V

Ohms Range

0.1Ω to 40MΩ

0.1Ω to 40MΩ

0.1Ω to 40MΩ

Capacitance Range

0.01nF to 100μF

0.01nF to 100μF

0.01nF to 100μF

Frequency Range

0.1mHz to 10MHz

0.1mHz to 10MHz

0.1mHz to 10MHz

Duty Cycle

0.1% to 99.9%

0.1% to 99.9%

0.1% to 99.9%

Temperature Range (F/C)

N/A

0°F to 2000°F

0°F to 2000°F

Continuity/Diode

yes

yes

yes

RS 232 Interface

yes

yes

yes

Software / Cable

optional

optional

optional

Catalog No. Description Price
EHMT310 Digital MultiMeter 163,404
EHMT320 Digital MultiMeter with Temperature 200,124
EHMT330 True RMS MultiMeter with Temperature 273,564
