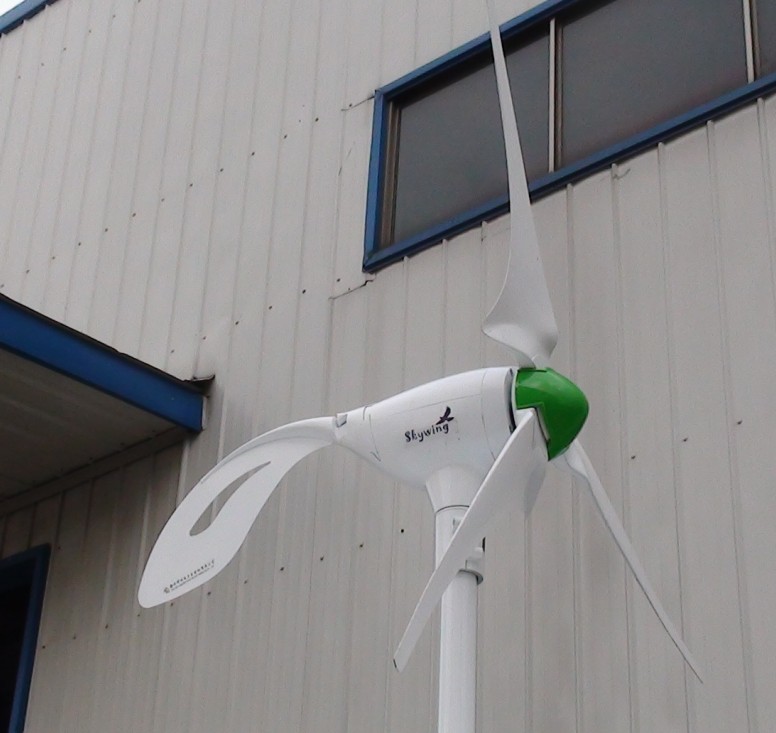

KRQ400 24V, 400W 풍력 발전기

WIND CONTROLLER 포함

	KRO-400W	KRO-600W	KRO-1000W
Rated power（W）：	400	600	1000
Rated voltage（DCV）：	24	24	24/48
Rated current（DCA）：	16	25	41/20
Rotor diameter（m）：	1.5	1.6	1.8

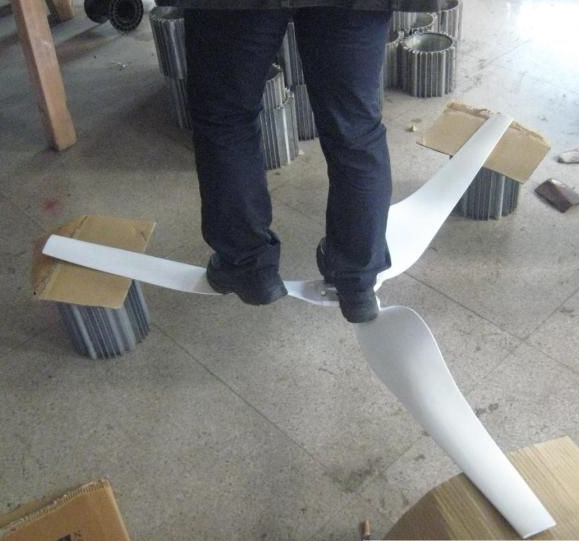

Material of blades：	Composited carbon fiber	Composited carbon fiber	Composited carbon fiber
Rotate direction(check downwind)：	clockwise	clockwise	clockwise
Start-up wind speed（m/s）:	2	2	2
Rated wind speed（m/s）:	9.6	10.5	13
Security wind speed（m/s）:	50	50	50
Weight of generator（kgs）：	18	18.6	19.5
Weight of blades（per/pcs）：	0.35	0.35	0.5
Type of the generator：	Permanent magnet-synchronous generator	Permanent magnet-synchronous generator	Permanent magnet-synchronous generator
Quantity of blades：	3	3	3
Windward mode：	Up -wind	Up -wind	Up -wind
