Simple Logger® is a single channel, low cost Datalogger that
requires no user setup. It has the ability to automatically adjust both
its scale range and its sample rate to optimize the recording session.
Simple Logger® includes a Windows® based software package that
can plot, analyze recording data and print graphs and data listings.
The main advantage
of Simple Logger® is its ability to perform a wide variety of
recording tasks with high resolution and accuracy without the need for
user setup. It achieves this by means of automatic scaling and Time
Extension Recording™ (TXR™) along with a flexible input
design.
Simply connect the
logger to the signal to be recorded and press the button to begin
recording. When the session is complete press the button to stop. It is
that simple!
Features
No user setup
required — one button operation
Log and measure
Amps rms, Volts rms, Temperature, DC Volts, DC Amps
Autosampling up
to 4096/hr — provides for maximum information
Stores over
8000 readings
Auto-scaling
— provides for optimum resolution for the recording session
Innovative Time
Extensive Recording™ (TXR™) technique provides
continuous recording for any length of time without user setup
Low power
— records for up to one year using a 9V Alkaline battery
Software
Features
Windows®
based graphing and analysis software included with each Datalogger
Statistics
appear on screen: Max, Min, Avg, Data and Time
On-Line display
of Datalogger values
Zoom capability
with automatic statistics update
Export data to
spreadsheet and database applications
Print both
graph and tabular listings
Programmable
scale and units for all DC loggers Automatic selection for AC
loggers
Common
Features
Sample rate:
4096/hr maximum
Resolution: 8
to 12 bit
Data storage:
8192 to 65,536 Readings (depending on model)
Power: 9V
Alkaline battery
Output: RS-232
via DB9 connector
Indicator: Red
LED flashes once every 2 seconds in STANDBY mode, twice every 2
seconds in LOGGING mode, and is off in OFF mode
Controls: One
membrane switch used to start and stop recording sessions and to
turn the Datalogger on and off
Operating
Temperature: -4 to +158°F (-20 to +70°C)
Storage
Temperature: -40 to +176°F (-40 to +80°C)
Relative
Humidity: 5 to 95% non-condensing
Typical
Applications
Machine load
monitoring
Metering CT
re-sizing
Temperature
monitoring
HVAC
troubleshooting
Computer room
monitoring
Food
storage/Refrigerated freight
Wave soldering
Process control
monitoring
Railroad signal
monitoring
Surge/sag
monitoring
Line
voltage/Stray voltage monitoring
Load profiling
Model L100 0 to
1Vrms input 0 to 10,000Arms based on probe Model L70 0 to 1Arms input 0 to 3,000Arms based on probe
AC Voltage Loggers
True RMS measurement with recessed safety banana jack inputs Model L205 0 to 25Vrms input (stray voltage) Model L230 0 to 300Vrms input Model L260 0 to 600Vrms input
AC Exception Voltage
True RMS measurement to capture short term events such as sags,
swells and dropout connection via recessed safety banana jacks Model L215 0 to 250Vrms

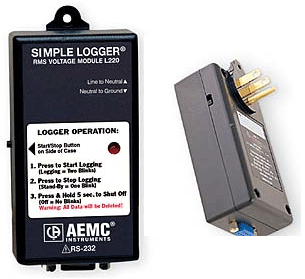

Plug-In AC Voltage Logger
Plugs directly into 120V wall outlet. Records line to neutral or
neutral to ground voltage — switch selectable Model L220 0 to 255Vac
CAT
NO
MODEL
DEscRIPTION
AVAIL
PRICE
AE916111
L100
Simple
Logger® Model L100 (RMS Current, 0 to 1Vac Input)
Yes
551,514
AE916112
L70
Simple
Logger® Model L70 (RMS Current, 0 to 1Aac Input)
Yes
551,514
AE211605
L205
Simple
Logger® Model L205 (Stray Voltage w/Leads, 0 to 25.5Vac
Input)
Yes
645.840
AE916113
L230
Simple
Logger® Model L230 (RMS Voltage w/Leads, 0 to 300Vac Input)
)
