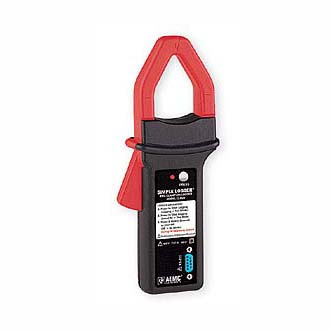

AE211611 Simple Logger® Model CL600

제조사 : DAVIS
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Click Above to Enlarge

Simple Logger® is a single channel, low cost Datalogger that requires no user setup. It has the ability to automatically adjust both its scale range and its sample rate to optimize the recording session. Simple Logger® includes a Windows® based software package that can plot, analyze recording data and print graphs and data listings.

The main advantage of Simple Logger® is its ability to perform a wide variety of recording tasks with high resolution and accuracy without the need for user setup. It achieves this by means of automatic scaling and Time Extension Recording™ (TXR™) along with a flexible input design.

Simply connect the logger to the signal to be recorded and press the button to begin recording. When the session is complete press the button to stop. It is that simple!

Features
  • No user setup required — one button operation
  • Log and measure Amps rms, Volts rms, Temperature, DC Volts, DC Amps
  • Autosampling up to 4096/hr — provides for maximum information
  • Stores over 8000 readings
  • Auto-scaling — provides for optimum resolution for the recording session
  • Innovative Time Extensive Recording™ (TXR™) technique provides continuous recording for any length of time without user setup
  • Low power — records for up to one year using a 9V Alkaline battery
Software Features
  • Windows® based graphing and analysis software included with each Datalogger
  • Statistics appear on screen: Max, Min, Avg, Data and Time
  • On-Line display of Datalogger values
  • Zoom capability with automatic statistics update
  • Export data to spreadsheet and database applications
  • Print both graph and tabular listings
  • Programmable scale and units for all DC loggers Automatic selection for AC loggers
Common Features
  • Sample rate: 4096/hr maximum
  • Resolution: 8 to 12 bit
  • Data storage: 8192 to 65,536 Readings (depending on model)
  • Power: 9V Alkaline battery
  • Output: RS-232 via DB9 connector
  • Indicator: Red LED flashes once every 2 seconds in STANDBY mode, twice every 2 seconds in LOGGING mode, and is off in OFF mode
  • Controls: One membrane switch used to start and stop recording sessions and to turn the Datalogger on and off
  • Operating Temperature: -4 to +158°F (-20 to +70°C)
  • Storage Temperature: -40 to +176°F (-40 to +80°C)
  • Relative Humidity: 5 to 95% non-condensing
Typical Applications
  • Machine load monitoring
  • Metering CT re-sizing
  • Temperature monitoring
  • HVAC troubleshooting
  • Computer room monitoring
  • Food storage/Refrigerated freight
  • Wave soldering
  • Process control monitoring
  • Railroad signal monitoring
  • Surge/sag monitoring
  • Line voltage/Stray voltage monitoring
  • Load profiling
Clamp-On AC Logger
True RMS measurement with split jaw opening (1.65")
Model CL600 0 to 600Arms

Flexible Current Probe Loggers
Fit around hard-to-reach or oversized conductors. Perfect for continuous- monitoring applications, with six-month recording capability on a single battery. Compact logging module mounts via Velcro® pads. Available in four models, each with 24" or 36" AmpFlex™ sensor.
Models AL24-2500 & AL36-2500 5 to 250 or 500Arms
Models AL24-5000 & AL36-5000 5 to 500 or 5000Arms

Each unit includes: 9V Alkaline battery, windows based graphing and analysis software (CD-ROM), 6 ft DB9 RS-232 serial cable, and user manual.


CAT NO MODEL DEscRIPTION AVAIL PRICE
AE211611   CL600   Simple Logger® Model CL600 (Clamp-On, RMS Current, 0 to 600Arms Input)   Yes   732,564



AE211372   AL24-2500   Simple Logger® Model AL24-2500 (RMS Current, 250/2500A, 24" AmpFlex™)   Yes   916,164



AE211373   AL36-2500   Simple Logger® Model AL36-2500 (RMS Current, 250/2500A, 36" AmpFlex™)   Yes   1,099,764



AE211374   AL24-5000   Simple Logger® Model AL24-5000 (RMS Current, 500/5000A, 24" AmpFlex™)   Yes   1,239,300



AE211375   AL36-5000   Simple Logger® Model AL36-5000 (RMS Current, 500/5000A, 36" AmpFlex™)   Yes   1,422,900
