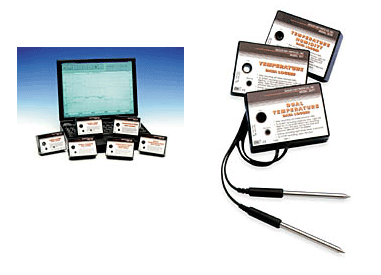

SU001 Temperature Datalogger
|
|
Parameters
|
- Single
Temperature
- Dual
Temperature
- AC
Voltage
- AC
Current
- 4-20 mA
- Pressure
- Event
Contact
- Event
Voltage
- Event
Sound
- Event
Light
|
| |
|
Features
|
- All
loggers can be individually calibrated in the field
- PC
software compatible with Windows 95, 95, 2000 & NT
- Selectable
recording intervals
- Start
and stop recordings in the field
- Unique
locking feature prevents tampering
- LED
indicator shows operation
- Retrieve
data with PC or DataStor (DST)
- External
probes supplied with certain loggers
|
| |
|
| SU001
— Temperature Datalogger |
| Ambient Operating
Temperature |
-40°F to +150°F
(-40°C to +65°C) |
| Resolution |
0.1°F (0.2°C) |
| Accuracy |
+/- 2°F (1°C) |
| Capacity |
10,000 Data Samples |
| Power |
3.6 Volt Lithium
Battery (Supplied) |
| Battery Life |
3 year (Average
Use) |
|
SU003 — Dual
Temperature Datalogger
|
|
| Ambient Operating
Temperature |
+10°F to +140°F
(-12°C to +60°C) |
| Ambient Operating
Temperature (Sensors) |
-40°F to +170°F
(-40°C to +76°C) |
| Remote Temperature |
Precision sensor
with 6' long Probe (DLTP6) cable and 4" stainless steel submersible
tip, interchangeable |
| Accuracy |
+/- 2°F (1°C) |
| Resolution |
0.1°F (0.2°C) |
| Capacity |
8,000 Data Samples |
| Power |
9 Volt Alkaline
Battery (Not Included) |
| Battery Life |
1 year (Average
Use) |
|
SU002 —
Temperature Humidity Datalogger
|
| Ambient Operating
Temperature |
+32°F to +140°F
(0°C to +60°C) |
| Relative Humidity
Range |
0 to 100% |
| Relative Humidity
Accuracy |
+/-2% from 0-95% RH |
| Relative Humidity
Resolution |
0.1% |
| Temperature
Accuracy |
+/-2°F (1°C) |
| Temperature
Resolution |
0.1°F (0.2°C) |
| Capacity |
8,000 Data Samples |
| Power |
9 Volt Alkaline
Battery (Not Included) |
| Battery Life |
1 year (Average
Use) |
| SU004 —
4-20mA Datalogger |
|
| Ambient Operating |
+10°F to +150°F
(-12°C to +65°C) |
| Temperature Range |
|
| Current Resolution |
0.01ma |
| Current Accuracy |
0.05ma |
| Measurement
Capacity |
16,000 Data Points |
| Power |
9 Volt Alkaline
Battery (not included) |
| Battery Life |
1 year (Average
Use) |
|
SU014 —
Voltage Datalogger
|
| Ambient Operating
Temperature Range |
+10°F to +150°F
(-12°C to +65°C) |
| Voltage Range |
0 to 500 VAC |
| Voltage Resolution |
0.1 VAC |
| Voltage Accuracy |
+/- 1 VAC |
| Memory Capacity |
16,000 Data Samples |
| Power |
9 Volt Alkaline
Battery (Not Included) |
| Battery Life |
1 year (Average
Use) |
|
SU007 —
Pressure Datalogger
|
| Ambient Operating
Temperature Range |
+32°F to +130°F
(0°C to +35°C) |
| Pressure Range |
0 to 500 PSI |
| Pressure Resolution |
0.15 PSI |
| Pressure Accuracy |
+/- 3 PSI |
| Memory Capacity |
16,000 Data Samples |
| Power |
9 Volt Alkaline
Battery (Not Included) |
| Battery Life |
1 year (Average
Use) |
|
Event Dataloggers
|
| SU008 Range |
24 VAC to 270 VAC
(50/60 Hz.) 24 VDC to 180VDC |
| SU006 Range |
Dry Contacts from 0
to 10 Ohms |
| SU010 Range |
Illumination
Threshold Range: 18 LUX to1900 LUX +/-20% |
| SU009 Range |
Sound Threshold
Range: 40 db to 114 db @ 1Khz. +/-20% |
| Ambient Operating
Temperature Range |
+10°F to +140°F
(-12°C to 60°C) |
| Measurement
Capacity |
8,000 Event Samples |
| Power |
9 Volt Alkaline
Battery (Not Included) |
| Battery Life |
1 year (Average
Use) |
|
SU005 — AC
Current Datalogger
|
| Ambient Operating
Temperature Range |
+10°F to +150°F
(-12°C to +65°C) |
| Current Range |
0 to 300 Amps AC
using supplied clamp-on probe |
| Current Resolution |
0.1 Amp AC |
| Current Accuracy |
+/- 5% |
| Memory Capacity |
16,000 Data Samples |
| Power |
9 Volt Alkaline
Battery (Not Included) |
| Battery Life |
1 year (Average
Use) |
| CAT
NO. |
 |
MODEL |
 |
DEscRIPTION |
 |
AVAIL |
 |
PRICE |
| SU001 |
|
DLT |
|
TEMPERATURE
DATA LOGGER |
|
Yes |
|
181,764
|
| SU002 |
|
DLTH |
|
TEMPERATURE
& HUMIDITY DATA LOGGER |
|
Yes |
|
136,844
|
| SU003 |
|
DLTT |
|
DUAL
TEMPERATURE DATA LOGGER |
|
Yes |
|
302,940
|
| SU004 |
|
DL420 |
|
4-20 mA DATA
LOGGER |
|
Yes |
|
174,420
|
| SU005 |
|
DLAC |
|
CURRENT DATA
LOGGER |
|
Yes |
|
174,420
|
| SU006 |
|
DLEC |
|
EVENT VOLTAGE
DATA LOGGER |
|
Yes |
|
174,420
|
| SU007 |
|
DLP |
|
PRESSURE DATA
LOGGER |
|
Yes |
|
291,924
|
| SU008 |
|
DLEV |
|
EVENT VOLTAGE
DATA LOGGER |
|
Yes |
|
181,764
|
| SU009 |
|
DLES |
|
EVENT SOUND
DATA LOGGER |
|
Yes |
|
181,764
|
| SU010 |
|
DLEL |
|
EVENT LIGHT
DATA LOGGER |
|
Yes |
|
181,764
|
| SU014 |
|
DLAV |
|
VOLTAGE DATA
LOGGER |
|
Yes |
|
181,764
|
| SU011 |
|
DP3 |
|
OPTIONAL
DATA PLOTTER FOR
Multi-Parameter Dataloggers |
|
Yes |
|
548,964
|
| SU012 |
|
DLS |
|
OPTIONAL
WIN 95 & 98 COMPATIBLE SOFTWARE
FOR Multi-Parameter Dataloggers |
|
Yes |
|
119,340
|
| SU013 |
|
DST |
|
OPTIONAL
DATA STOR FOR
Multi-Parameter Dataloggers |
|
Yes |
|
321,300
|
| |
