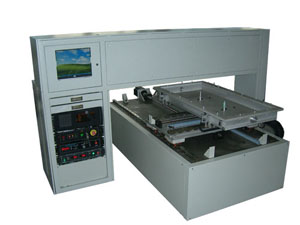

레이저 필름 절단기 SDF

판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Equipment performance


SDF(SSF)series laser scribing machine: Adopting semiconductor pump laser or solid state laser. the direction of laser point is fixed, the

worktable take with the solar panel, and move with the laser point relatively to finish the scribing work, the special X-Y axis worktable for

scribing, servo-motor for driving, ball screw mandrel and track for transmission. By the proprietary control software for easily edit and

revision of scribing path, adopting dividing-laser  system to finish the laser output of two path synchronously.

Applicable fields


Engraving and lineation of TCO film、a-Si film、Al plating film at solar energy industry.

The main technical parameters



Type specification

SDF50B

SDF10D

SSF10B

SSF5D

Laser wavelength

1064nm

532nm

1064nm

532nm

Laser power

50W

10W

10W

5W

Laser repetition frequency

200Hz~50kHz

1kHz~100kHz

Scriber linewidth

100μm

80μm

Scriber speed

200mm/s

400mm/s

Scriber precision

±10μm

±10μm

Work platform

49'× 25'(1250×640mm)

49'× 25'(1250×640mm)

Cooling way

Outside suspension type (integration)
circulation water cooling

Wind cooling

Showroom for samples
