The HT100 &
HT120 were developed to handle the extreme temperatures and conditions
previously impossible for a Datalogger. With a temperature monitoring
range of -40 to +257°F and waterproof case constructed of stainless
steel, the HT100 & HT120 are ready for your toughest applications.
Perfect for HACCP, FDA, pharmaceutical, medical, agricultural, and oil
& gas applications. Compatible with our newest presentation
software.
Features
Real
time monitoring and graphing
Faster
downloads
Makes
exporting to other software a snap

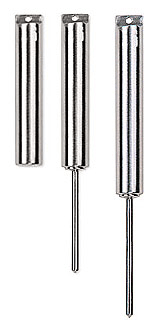

DK976517
Compact,
only 3.69" x 0.6875" DIA. Perfect for tight
locations, oil & Gas and process applications
DK976516
Features
a 2.5" x 3/16" DIA probe. Perfect for monitoring
liquids and solids in freezers, autoclaves, incubators and
baths.
Also
perfect for monitoring soil and sand temperatures
DK976525
Features
a 5" x 0.11" DIA probe. Made to meet the
requirements of HACCP.
Monitor
meat in smokers and coolers and much more
SPECIFICATIONS
Temperature Range
-40 to +257 °F
(-40 to +125 °C)
Temperature
Accuracy
±1.8°F (±1°C)
over range -4 to +212 °F (-20 to +100 °C)
±3.6 °F (±2°C)
over range -40 to +257 °F (-40 to +125 °C)
Sensor Type
Internal Thermistor
Battery Type
Lithium 3.6V
(non-replaceable)
Battery Life
5 years typical at
1 minute sample intervals
Battery Storage
Life
>10 years
typical when not logging
Repairs
Unit
non-repairable, practical life of unit, 5 years
User Calibration
Zero calibration
with DK015 software
Sample Point
Storage*
7936 measurements
Download Time
45 seconds, typical
with logger full
Response Time
DK976517: 15 min.
to 63% of Full Scale, typical;
DK976516/DK976525: 5 min. to 63% of Full Scale, typical
Resolution
0.1 °F (0.1 °C)
at +70 °F; 1 °F (0.6 °C) over range -40 to +257 °F (-40 to +125 °C)
Approvals
CE
Enclosure Type
316 Stainless Steel
Dimensions
(enclosure)
DK976517:
3.69" (9.37cm) x 0.6875" (1.75cm)
DIA; DK976516: 6.25" (15.88cm) x 0.6875" (1.75cm)
DIA;DK976525: 8.69" (22.07cm) x 0.6875" (1.75cm) DIA, Probe
0.11" (0.28cm) DIA
PC with 386 or
better microprocessor, 4M RAM, 1 free COM (serial) port, CD drive
Cable Type/Length
9 pin male D-shell
to male 2.5mm stereo plug, 6' long
Computer Interface
RS-232 COM (serial)
port
Sofyware Version
Required (minimum)
1.00.00.64
* Sample points
are a logger's data storage capacity.
For example, the DK976517 High Temperature Datalogger can store up to
7,396 sample points. If you request a temperature sample every minute,
it would record for 5.5 days before filling the memory, recording every
10 seconds would take 22 hours to fill, and so on. You can set the
sample rate from 10 seconds to 24 hours in 10 second increments.
CAT
NO.
MODEL
DEscRIPTION
AVAIL
PRICE
DK976525
A202
100' Straight
Extension Cable (FT121 only)
Yes
861,840
DK976516
HT120
High
Temperature Datalogger w/Probe
Yes
753,840
DK976517
HT100
High
Temperature Datalogger
Yes
732,240
DK015
A015
DicksonWare™
Software and Download cable
Yes
170,640
DK025
A025
DicksonWare™
Secure Software and Download Cable (21CFR11 compliant)
Yes
357,714
