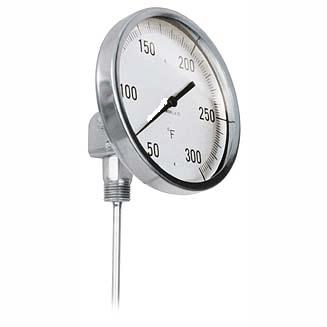

PZ1561751 2 1/2 " Stem All Angle Thermometer

제조사 : DAVIS
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

An unusual feature of this thermometer is that the head may be turned or tilted or any angle. Constructed of welded stainless steel, it is rust, corrosion and leak proof. The bimetal is dampened with silicone for minimum heat transfer.

Thermometers are made to order. Please be certain of your specifications. Credit cannot be given for returned instruments.


Features
  • Accuracy: ±1% of full scale.
  • Recalibration: External reset screw.
  • Stem: rated to 1000 psi. Use of a thermowell is recommended for higher pressure or for heavy duty use.
  • Rust and corrosion proof, leak proof or for heavy duty use.
  • The bimetal element will withstand a 50% over-range on instruments up to and including 500°F. A 10% over-range is permissible on higher temperature ranges. Under-ranging within the 50% limit on all ranges will not harm its accuracy.

RANGES & DIVISIONS

When ordering please specify temperature range

A) -40°F to 160°F 2 Degree Divisions
B) 0°F to 250°F 2 Degree Divisions
C) 50°F to 500°F 5 Degree Divisions
D) 200°F to 1000°F 10 Degree Divisions
E) -10°C to +70°C 1 Degree Divisions
F) 0°C to 150°C 1 Degree Divisions
G) 0°C to 300°C 2 Degree Divisions

CAT NO. MODEL DEscRIPTION AVAIL PRICE
PZ1561751   0.77   2 1/2 " Stem All Angle Thermometer   Yes   266,220
PZ1561761   0.77   4" Stem All Angle Thermometer   Yes   266,220
PZ1561771   0.77   6" Stem All Angle Thermometer   Yes   266,220
PZ1561781   0.77   9" Stem All Angle Thermometer   Yes   266,220
PZ1561791   0.77   12" Stem All Angle Thermometer   Yes   266,220
PZ156180   0.77   15" Stem All Angle Thermometer   Yes   302,940
PZ156181   0.77   18" Stem All Angle Thermometer   Yes   321,300
PZ156182   0.77   24" Stem All Angle Thermometer   Yes   339,660
PZ156183   0.77   30" Stem All Angle Thermometer   Yes   365,364
PZ156184   0.77   36" Stem All Angle Thermometer   Yes   403,920
