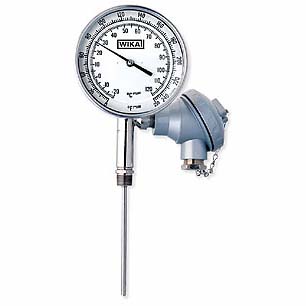

| The Twin-Temp thermometer combines the convenience, simplicity, and self-powered actuation of a bimetal thermometer with the digital accuracy and data acquisition capabilities of a thermocouple or RTD electrical output. With standards traceable to the NIST, the Twin-Temp offers simplified calibration for ISO 9000 compliance and other statistical process control requirements. It is ideal in applications requiring quick and easy readability at the point of process, while still affording a means of electronic data acquisition, digital panel remote read-out. The Twin-Temp puts two temperature sensors to work at one location. |
| |
|
Features |
- Case and Bezel: 304 Stainless Steel
- Case: All Angle or Back Connected
- Process Connection: 1/2" NPT Standard
- External Reset: Slotted hex head, fully gasketed
- Window: Glass, fully gasketed
- Hermetic Seal: Per ASME B40.3
- Warranty: 1 Year
|
| | | SPECIFICATIONS
| Dial Size |
3" or 5" |
| Accuracy |
±1% of full range span |
| Over Range |
50% over/under range (maximum exposure 500°F) |
| Stem |
304 Stainless Steel, TIG welded at tip and case connector to prevent leakage. 1/4" diameter standard, lengths available from 2-1/2" to 48" for Thermocouple, 4" to 48" for RTD. |
| Thermocouple |
Type K grounded junction thermocouple standard.
Types J, E, T available |
| RTD |
100-Ohm thin film Platinum DIN Curve (.00385 Ohm/Ohm/°C), 3 wire standard |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| WK52041 |
|
52040D006G4R1AR |
|
5" 0/250°F & Corresponding °C, 4.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
1,099,764
|
| WK52042 |
|
52040D008G4R1AR |
|
5" 50/300°F & Corresponding °C, 4.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
1,099,764
|
| WK52043 |
|
52040D010G4R1AR |
|
5" 50/500°F & Corresponding °C, 4.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
1,099,764
|
| WK52044 |
|
52060D006G4R1AR |
|
5" 0/250°F & Corresponding °C, 6.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
1,099,764
|
| WK52045 |
|
52060D008G4R1AR |
|
5" 50/300°F & Corresponding °C, 6.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
1,099,764
|
| WK52046 |
|
52060D010G4R1AR |
|
5" 50/500°F & Corresponding °C, 6.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
1,099,764
|
| WK52047 |
|
52090D006G4R1AR |
|
5" 0/250°F & Corresponding °C, 9.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
1,099,764
|
| WK52048 |
|
52090D008G4R1AR |
|
5" 50/300°F & Corresponding °C, 9.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
1,099,764
|
| WK52049 |
|
52090D010G4R1AR |
|
5" 50/500°F & Corresponding °C, 9.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
1,099,764
|
| WK52050 |
|
30040D006G4R1AR |
|
3" 0/250°F & Corresponding °C, 4.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
927,032
|
| WK52051 |
|
30040D008G4R1AR |
|
3" 50/300°F & Corresponding °C, 4.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
927,032
|
| WK52052 |
|
30040D010G4R1AR |
|
3" 50/500°F & Corresponding °C, 4.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
927,032
|
| WK52053 |
|
30060D006G4R1AR |
|
3" 0/250°F & Corresponding °C, 6.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
927,032
|
| WK52054 |
|
30060D008G4R1AR |
|
3" 50/300°F & Corresponding °C, 6.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
927,032
|
| WK52055 |
|
30060D010G4R1AR |
|
3" 50/500°F & Corresponding °C, 6.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
927,032
|
| WK52056 |
|
30090D006G4R1AR |
|
3" 0/250°F & Corresponding °C, 9.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
927,032
|
| WK52057 |
|
30090D008G4R1AR |
|
3" 50/300°F & Corresponding °C, 9.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
927,032
|
| WK52058 |
|
30090D010G4R1AR |
|
3" 50/500°F & Corresponding °C, 9.0" Stem, 1/2" NPT, 4-20mA output Thermometer |
|
Yes |
|
927,032
| | |
