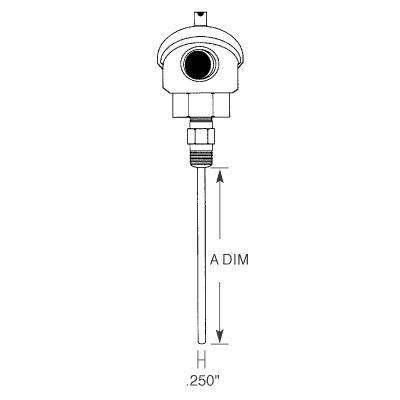

RTD terminated with hinged flip top cover weatherproof head and 1/2" x 1/2" NPT x 1-1/2" long 303 S.S. NPT mounting fitting brazed to sheath.
NOTE: For spring loading add "SL" to end of part number. Spring loaded type is not sealed from process. For adjustable immersion depth use compression fitting below.
How To Order: 1. Specify catalog number. 2. Specify "A" length. 3. Specify "B" length. 4. Specify 2, 3 or 4 wires Order Example: R218-38 A=4" B=5' 3 wires Add $1.00/inch for extra lengths on "A" dimension Add $3.00/foot for extra lengths on "B" dimension (if applicable)
Please inquire for NIST Certification
All RTD Probes are made to order. Please be certain of your specifications. Credit cannot be given for returned instruments.
CAT NO
MODEL
DEscRIPTION
AVAIL
PRICE
DQ-WC9100
R288-1
Flip Top Head Type Platinum (RTD) Probe, Alpha 0.00385, Max Sheath Temp. 500°F
Yes
Call 031-777-1588
DQ-WC9101
R288-1-HT
Flip Top Head Type Platinum (RTD) Probe, Alpha 0.00385, Max Sheath Temp. 1000°F
Yes
Call 031-777-1588
DQ-WC9102
R388-1
Flip Top Head Type Platinum (RTD) Probe, Alpha 0.00392, Max Sheath Temp. 500°F
Yes
Call 031-777-1588
DQ-WC9103
R388-1-HT
Flip Top Head Type Platinum (RTD) Probe, Alpha 0.00392, Max Sheath Temp. 1000°F
Yes
Call 031-777-1588
