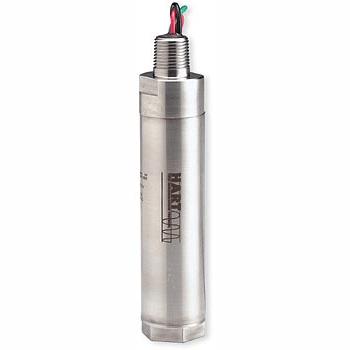

| Viatran's Model 970, designed specifically for the oil production industry, features a HART communications protocol that enables digital communication with the transmitter. This allows for self diagnostics, the setting, storage, and recall of calibration data, as well as the efficiency of a multidrop network for multiple transmitters.
The HART protocol allows a simultaneous analog and digital signal transmission.
The "70" Series also features bonded foil strain gauge sensors. The inherent overpressure protection in this technology helps to eliminate damage to the sensors when they are exposed to hydraulic spikes. |
| |
|
Features |
- Simultaneous digital/analog communications
- 10:1 rangeability
- Small size and weight
|
| |
|
Applications |
- Offshore oil rigs
- Oil production platforms
- Natural gas pipelines
- Rig safety systems
|
| | | SPECIFICATIONS
|
Full Scale Pressure Range (FSPR) |
0-100, 150, 300, 500, 750, 1K, 1500, 2K, 3K, 5K, 7500, 10K, 15K, 20K, 30K, 40K, 50K, 60K, 75K, 100K PSIS, PSIA |
| Linearity (BFSL) |
| 0-100 PSI |
±0.5% FSO |
| 150-10K PSI |
±0.2% FSO |
| 15K - 20K PSI |
±0.25% FSO |
| Hysteresis |
≤ ± 0.1% FSO |
| Repeatability |
±0.1% FSO |
| Full Scale Output |
16 mA |
| Resolution |
| Sensor (Analog to Digital Converter) |
18 bits |
| Output (Digital to Analog Converter) |
12 bits |
| Drift |
≤ ±0.25% FSO per 6 months |
| Response Time |
Analog output response to a step change in pressure will be from 0.07 sec. minimum to a 36 sec. maximum for one time constant and is adjustable through software. |
| Thermal Zero Shift |
≤ ±1.0% FSO per 100°F |
| Thermal Sensitivity Shift |
≤ ±1.0% FSI per 100°F |
| Operating Temperature Range |
-40°F to +190°F |
| Non-Operating Temperature Range |
-65° F to +250° F |
| Supply Voltage |
7 to 30 VDC |
| Output Signal |
Two wire 4-20mA. Digital process signal superimposed on 4-20mA signal, available to any host computer system conforming to HART protocol. |
| Load Impedance |
230 Ω to 1,400 Ω |
| Pressure Connection |
| 0-100 thru 0-15K |
1/4" NPT(F) |
| 0-20K thru 0-50K |
9/16" - 18 gland thread, pressure relieved. |
| 1/4" OD high pressure tube, 60° come. |
| Conforms to autoclave type F250-C |
| 0-60K thru 0-100K |
5/8" - 18 gland thread, pressure relieved. |
| 5/16" OD high pressure tube, 60° cone. |
| Conforms to autoclave type F312-C150. |
Standard Pressure Ranges in PSI - when ordering, please choose code that matches your specific range.
|
Code |
Range |
Code |
Range |
Code |
Range |
Code |
Range |
| AH |
0-50 |
AW |
0-750 |
BF |
0-5000 |
BS |
0-30K |
| AM |
0-100 |
AY |
0-1000 |
BH |
0-7500 |
BU |
0-40K |
| AN |
0-150 |
AZ |
0-1500 |
BM |
0-10K |
BW |
0-50K |
| AP |
0-200 |
BA |
0-2000 |
BP |
0-15K |
BZ |
0-60K |
| AR |
0-300 |
BC |
0-3000 |
BQ |
0-20K |
EC |
0-75K |
| AU |
0-500 |
|
|
BR |
0-25K |
EG |
0-100K |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| VI970 |
|
970A |
|
Absolute pressure transmitter (up to 15K)., Specify Range |
|
Yes |
|
2,149,200 |
| VI971 |
|
970A |
|
Absolute pressure transmitter (20K and above), Specify Range |
|
Yes |
|
3,013,200 |
| VI972 |
|
970S |
|
Sealed gauge pressure transmitter (up to 15K), Specify Range |
|
Yes |
|
2,106,000 |
| VI973 |
|
970S |
|
Sealed gauge pressure transmitter (20K and above), Specify Range |
|
Yes |
|
2,926,800 | | |
|
|
 | |
 |
|
 |
|
