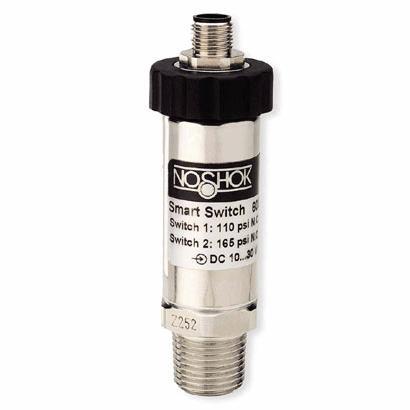

The Smart Switch is truly a “State of the Art” pressure switch.Hydraulic Systems and Stamping Presses

The Smart Switch is truly a “State of the Art” pressure switch. Its design is based upon our proven sputter thin film and diffused semiconductor pressure transmitters for unparalleled accuracy, stability, overpressure protection and service life.

Applications

Hydraulic Systems and Stamping Presses
Industrial Machinery and Machine Tools
Pumps, Compressors, and Medical Equipment
Laboratory, Test and Transportation Equipment
Refrigeration, Medical, HVAC, and Transportation Equipment
Construction and Marine Equipment

Description	Price	Order Info in Bold (gray area) Please Specify
1	N/C	Switch Function	1 N.O. or N.C. Switch-pnp
2			2 N.O. or N.C. Switch-pnp
3			1 N.O. or N.C. Switch-npn
4			2 N.O. or N.C. Switch-npn
2	N/C	Process Connections	1/4" NPT Male
3	$34.40		7/16"-20 UNF-2A Male
8	STD		1/2" NPT Female
4	$34.40		1/8" NPT Female
5	$34.40		1/4" NPT Female
9	$34.40		7/16"-20 UNF-2B Female
Specify Pressure Range	$56.75	Pressure Ranges	0 to 30" VAC	30V
	N/C		0 to 5 psig	5	0 to 600 psig	600
			0 to 10 psig	10	0 to 750 psig	750
			0 to 15 psig	15	0 to 1000 psig	1000
			0 to 30 psig	30	0 to 2000 psig	2000
			0 to 60 psig	60	0 to 3000 psig	3000
			0 to 100 psig	100	0 to 5000 psig	5000
			0 to 150 psig	150	0 to 7500 psig	7500
			0 to 200 psig	200	0 to 10000 psig	10000
			0 to 300 psig	300	0 to 15000 psig	15000
			0 to 500 psig	500
	$66.20		0 to 5 psia	5A	0 to 100 psia	100A
			0 to 10 psia	10A	0 to 150 psia	150A
			0 to 15 psia	15A	0 to 200 psia	200A
			0 to 30 psia	30A	0 to 300 psia	300A
			0 to 60 psia	60A
3	STD	Electrical Connections	5 pin M12X1 Connector
ORF	$6.95	Options	SS Threaded orifice

CAT NO.

MODEL

DEscRIPTION

AVAIL

PRICE

NS600

600

Smart Switch

Yes

721,656

Must Specify: Switch Function, Process Connection, Pressure Range, Electrical Connection and Option (See Ordering Information in Chart above)
