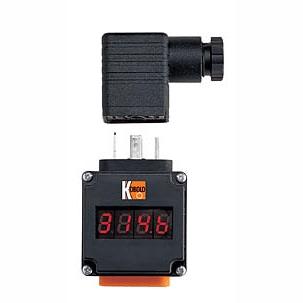

| The AUF device is a universal display unit usable in all 4-20 mA transmission circuits. |
| The AUF device is a universal display unit usable in all 4-20 mA transmission circuits. Sandwiched directly between a standard DIN 43650 (Hirschmann style) plug and socket assembly, the AUF is the easiest of displays to install. The AUF is fully scalable through two control buttons. Programming capabilities include scaling, decimal point location, damping and, for units with a switch, setpoint value.
Power is provided to the AUF directly via the 4-20 mA loop, so no additional power supply is required. The programming information resides inside the AUF’s EEPROM memory, making the unit immune to power failures up to ten years in duration.
Small, easily installed...the AUF is the ideal way to get more from your pressure transmitter. Now you can have your signal, and see it too. |
| |
|
Features |
- Local indication for transducer & transmitters
- 4-20 mA loop-power driven
- Works with any Hirschmann® plug
- 4 digit accuracy
- Switch available
|
| | |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| KB1000 |
|
AUF-1000 |
|
Compact Local Electronic Display, Standard Unit |
|
Yes |
|
537,840 |
| KB1001 |
|
AUF-1001 |
|
Compact Local Electronic Display, Standard Unit With Alarm Switch |
|
Yes |
|
645,840 | | |
|
|
 | |
 |
|
 |
|
