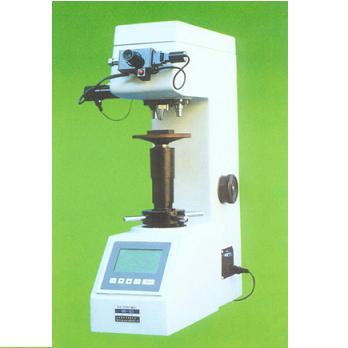

MODEL HBS-62.5 DIGITAL DISPLAY LOW

LOAD BRINELL HARDNESS TESTER

Features:

 . The Graphical User Interface is adopted and the operating

   system can be changed between Chinese and English. The

   system adopts quick and convenient menu operation.

 . The parameters of every measurement can be autosaved and

   the testing procedure can be performed automatically.

 . The testing data can be processed automatically and the

   hardness value's converting can also be performed auto-

   matically.

 . An advanced frictionless loading shaft mechanism is

   adopted. It can ensure the accurate and reliable test.

Specifications

   Measuring range: 4-450HBS, 4-650HBW

   Test force: 9.807，49.03，98.07，153.2，294.2，612.9N

               (1, 5, 10, 15.625, 30, 62.5kgf)

   Max. height of test piece: 180mm

   Depth of throat: 125mm

   Magnifications of the optical micrometer: 125X, 50X

   Min. scale value of the optical micrometer: 1μm, 2.5μm

   Power supply: 220V AC or 110V AC, 50/60Hz

   Dimensions: 580 x 260 x 730mm

   Weight: Approx. 90kg

Main accessories:

   Large flat anvil: 1 pc.

   Small flat anvil: 1 pc.

   V-notch anvil: 1 pc.

   Steel ball penetrator: Φ1, Φ2, Φ2.5mm,  1 pc. each

   Brinell standardized block: 3 pcs.
