| The MF gauges are accurate to ±0.2% of full scale, plus a diecast aluminum housing for added protection |

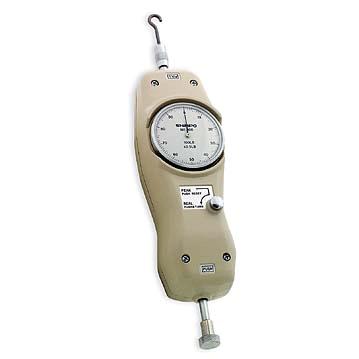

| The MF series mechanical force gauge is ideal for measuring push/pull forces in quality control/material testing, manufacturing assembly, maintenance and inspection. No batteries are required - the calibration is accomplished by a set of precisely matched springs which are overload protected to 165 pounds! The MF mechanical force gauge can be used anywhere without "recharging."
The peak mode features an easy push-button reset. This is especially helpful for doing repetitive testing in an assembly line or quality control lab. The real time mode allows you to see force changes as they occur. Since the gauge is mechanical, the response time is immediate.
The MF gauges are accurate to ±0.2% of full scale, plus a diecast aluminum housing for added protection. All gauges come complete with carrying case and attachments. Ergonomically designed for handheld use, they can also be used with the optional handle (great for loads over 15 lbs) or mounted to a test stand or fixture. |
| |
|
Features |
- Rugged and economical
- Measure tension and compression forces
- Real time mode shows force changes as they occur
- PEAK mode captures peak forces
- No dead batteries to worry about
- Easily mounts to a test stand
- Accurate to ±0.2% of full scale
- Optional handle assembly
|
| | |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| WG513101 |
|
MF-2 |
|
Mechanical Force Gauge, Capacity: 2 lb, Dial Graduation: 0.01 lb |
|
Yes |
|
1,026,000 |
| WG513102 |
|
MF-5 |
|
Mechanical Force Gauge, Capacity: 5 lb, Dial Graduation: 0.025 lb |
|
Yes |
|
1,026,000 |
| WG513103 |
|
MF-10 |
|
Mechanical Force Gauge, Capacity: 10 lb, Dial Graduation: 0.05 lb |
|
Yes |
|
1,026,000 |
| WG513104 |
|
MF-20 |
|
Mechanical Force Gauge, Capacity: 20 lb, Dial Graduation: 0.1 lb |
|
Yes |
|
1,026,000 |
| WG513105 |
|
MF-30 |
|
Mechanical Force Gauge, Capacity: 30 lb, Dial Graduation: 0.2 lb |
|
Yes |
|
1,026,000 |
| WG513106 |
|
MF-50 |
|
Mechanical Force Gauge, Capacity: 50 lb, Dial Graduation: 0.25 lb |
|
Yes |
|
1,026,000 |
| WG513107 |
|
MF-100 |
|
Mechanical Force Gauge, Capacity: 100 lb, Dial Graduation: 0.5 lb |
|
Yes |
|
1,026,000 |
| SHMFP01 |
|
MFP |
|
OPTIONAL OPTIONAL HANDLE FOR Mechanical Force Gauges |
|
Yes |
|
216,000 | | |
|
|
 | |
 |
|
 |
|
