Now Available With DAC
(Distance Amplitude Correction)
Option

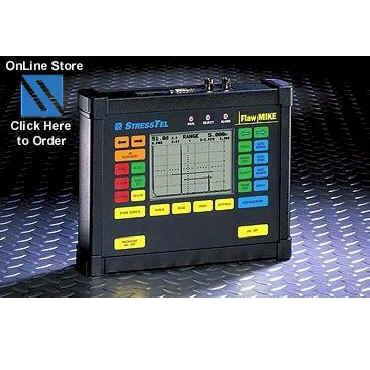

The StressTel FlawMIKE is easy-to-use with direct access keys for all frequently used functions. One key press changes gain, turns the backlight on, prints a report, and displays all FlawMIKE settings. The high resolution LCD display is easy-to-read with a 60Hz update rate and excellent daylight visibility. The rugged metal housing and sealed keypad handle the abuse of the toughest working conditions.
Whether you are looking for delaminations in a tank bottom, pipe wall thickness through attenuative coatings, or defects in a girth weld, choose the StressTel FlawMIKE- your tough, affordable, easy-to-use flaw detector.
|
| |
|
FlawMike Specifications
|
Key Features |
Display
1/4 VGA transflective LCD
3.8 in x 2.9 in (96mm x 74mm)
viewing area
320 x 240 pixel density
60 Hz update rate
Adjustable contrast and backlight
Physical Description
9.6 inches wide (244mm)
7.7 inches long (196mm)
2.1 inches deep (53mm)
5 lbs (2.27kg) with batteries
Environmentally sealed aluminum
case
Weather resistant keypad
Operating temperature 32 degrees
Fahrenheit to 113 degrees
Fahrenheit (0 degrees Celsius to 45
degrees Celsius) |
- Five pounds total weight
- Direct access keys to all
functions
- Selectable pulser power
settings: low and high
- Measuring range from 0.14" to
120" (3.6mm to 3000mm) in
steel
- Selectable transducer modes:
single, dual and angle beam
- Dual gates for accurate
thickness measurements
- Memory storage for 80 datasets
- Selectable units of measure:
inches and millimeters
- Frequency range from 0.5 MHz
to 15 MHz
- Selectable damping settings
- Built-In trig functions for
precise flaw location
- RS232 port for serial printers
- Variable PRF settings
|
Power Supply
4 "C" Alkaline or NiCad batteries
Interchangeable and easy-to-access
Operating time 8 hours without
backlight 6 hours with backlight
|
Special Features
On Screen Amplitude Measurement:
% full screen height
Trig Functions: Calculation of sound
path, projection distance and flaw
depth
Set-Up Memory: 80 datasets
Digital Thickness: Echo-to-Echo
measurement
Direct Report Printers: Epson, HP
Deskjet, HP Laserjet and Seiko
DPU
Language: English, German, French,
Spanish and Italian |
|
|
| Unit Features |
| 1. |
Active function |
|
| 2. |
Digital thickness |
| 3. |
User selectable large digit display |
| 4. |
Active function
increment/decrement keys |
| 5. |
ANGLE sets wedge angle, X
valueand material thickness |
| 6. |
PROBE ZERO for transducer delay |
| 7. |
SETTINGS displays FlawMIKE
settings |
| 8. |
Data-set function keys |
| 9. |
Dedicated ON/OFF BACKLIGHT
key |
| 10. |
Dual or single element
measurement mode |
| 11. |
Dedicated GAIN keys |
| 12. |
Signal amplitude |
| 13. |
Dual gates | |
|
FlawMike Kit Contains
|
* |
FlawMike Portable Ultrasonic Flaw Detector |
|
|
* |
4 "C" NiCad Batteries |
|
|
* |
External Battery Charger |
|
|
* |
A.C. Power Supply |
|
|
* |
Operation Manual |
|
|
* |
Hardshell Transport Case |
|
|
* |
Softshell Carrying Bag |
|
|
* |
Certification of Calibration |
|
Warranty
The FlawMike has a full one-year warranty on parts and labor excluding batteries. | | |
|
|
 | |
 |
|
 |
|
