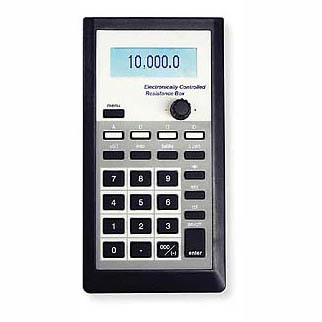

This Resistance Box is like nothing you have ever seen before! Microprocessor-controlled and loaded with innovative features, the Resistance Box succeeds in providing highly accurate and precise resistance values in an intuitive and user-friendly fashion. With a resistance value range of up to 24 MΩ and a power rating of up to 1 watt, the handheld unit is practical for all industries including automotive, medical, test & measurement, telecommunications, and HVAC.
Automatic RTD simulation
The Translation Table Add-on enables the user to download and store data tables in the Resistance Decade Box for translating a known, user-definable physical characteristic into a resistance value. Use this option to simulate any type of transducer that converts a physical phenomenon into a resistance value: thermistors, conductivity sensors, etc... Each table may contain up to 256 equivalences.
Software
Using the RS-232 interface and the Software Development Kit, you can control the unit from a remote computer and design automated test equipment to fit your custom application. |
| |
|
Features |
- Economical
- Keypad Interface
- Quick Value Keys
- Memory Keys
- Current Limiter
- Increment Value Setting
- Open Key
- Easy-to-Read LCD Display
- Automatic Residual Resistance
- Auto-Off Power shuts off after 4 minutes of inactivity
- RS-232 Interface Capability
- Field Calibration
- FLASH Software Updates
|
| | | SPECIFICATIONS
| Model |
IT250 |
IT260 |
IT270 |
| Range |
0 to 24,000,000 Ω |
0 to 24,000,000.0 Ω |
0 to 1,500,000.00 Ω |
| Resolution |
1 Ω |
0.1 Ω |
.01 Ω |
| Accuracy |
±1 Ω (up to 1,000 Ω)
± 0.1% (above 1,000.0 Ω) |
± 0.5 Ω (up to 1,000.0 Ω)
± 0.1% (above 1,000 Ω) |
± 0.5 Ω (up to 5,000.0 Ω)
± 0.1% (above 5,000.0 Ω) |
| Power Rating |
1.0 W |
1.0 W |
1.0 W |
| Power Supply |
4 AA alkaline batteries |
4 AA alkaline batteries |
4 AA alkaline batteries |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| IT250 |
|
OS-250 |
|
Elect. Ctrl. Resistance Box 1Ω-24 M |
|
Yes |
|
3,021,840 |
| IT260 |
|
OS-260 |
|
Elect. Ctrl. Resistance Box 0.1Ω -24 M |
|
Yes |
|
3,453,840 |
| IT270 |
|
OS-270 |
|
Elect. Ctrl. Resistance Box 0.01Ω -1.5 M |
|
Yes |
|
3,885,840 |
| IT271 |
|
OS-SWK |
|
OPTIONAL OS customization software development kit FOR Electronically Controlled Resistance Box and RTD Simulator |
|
Yes |
|
429,840
|
| IT272 |
|
OS-TL |
|
OPTIONAL OS test leads, dual banana to mini-alligator FOR Electronically Controlled Resistance Box and RTD Simulator |
|
Yes |
|
54,000
| | |
|
|
 | |
 |
|
 |
|
