| Indicates all common wiring faults including split pairs, shorts, opens and reversed pairs |
|

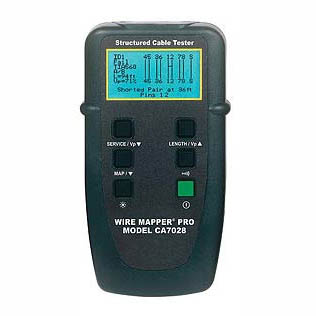

WIRE MAPPER PRO™ LAN Cable Tester Model CA7028 |
- Indicates all common wiring faults including split pairs, shorts, opens and reversed pairs
- Unique graphical and digital display of fault information
- Indicates distances to open and short circuit faults and identifies when at end
- Built-in tone generator for tracing cables
- Built-in service check function to detect 10 Base T, 100 Base T, telephone and token ring
- Visual and audible warning of live network voltages
- Works with Category 6 cables
- Rugged palm-top design weighs less than 12 oz (350g)
- Large ultra high visibility electroluminescent display
- Complete with remote unit and mini patch leads
- Up to 16 unique remote office identifiers available
- Works with TIA 568A/B, USOC and ISDN wiring schemes
|
| |
|
FAULT MAPPER™ Cable Fault/Length Tester Alphanumeric TDR Model CA7024 |
- Measure cable length up to 6000 ft
- Built-in library of most common cables and their VOP
- Manual selection of VOP for all cables not found in library
- VOP setting displayed along with length and cable type (if in library)
- Detects opens and shorts and the distance between them
- Built-in tone generator for tracing cables
- Large ultra high visibility
|
| | |
|
FAULT MAPPER PRO™ Telephone Cable Tester Graphical TDR Model CA7026 |
- Detects opens, shorts, taps, faulty taps, bridge taps, splitters, high resistance, water soaked and wet cables, splices and more
- Identifies impedance mismatches
- Indicates cable faults up to 10,000 ft
- Works with twisted pair, parallel and coaxial cable
- Selectable cable impedance (50, 75, 100Ω)
- Over-voltage protection up to 250Vac/dc
- Adjustable cursor assists in locating fault position
- Large ultra high visibility electroluminescent display
|
| | |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| AE212780 |
|
CA7024 |
|
Fault Mapper™ Model CA7024 (Alpha Numeric TDR) |
|
Yes |
|
1,069,200 |
| AE212781 |
|
CA7026 |
|
Fault Mapper PRO™ Model CA7026 (Graphical TDR) |
|
Yes |
|
1,825,200 |
| AE212782 |
|
CA7028 |
|
Wire Mapper PRO™ Model CA7028 (LAN Tester) |
|
Yes |
|
1,069,200 | | |
|
|
 | |
 |
|
 |
|
