| Maximum AC current of 600A, Measure AC Current, AC/DC Voltage and Resistance |
|
Features |
- Maximum AC current of 600A
- Measure AC Current, AC/DC Voltage and Resistance
- Data Hold “freezes” data in display
- 1.25" (33mm) circular jaw opening for large cables (350MCM)
- Peak Hold captures in-rush currents
- Audible Continuity beeper
- Auto power off
- Complete with test leads, alligator clips, 9V battery, and carrying case
|
| |
|

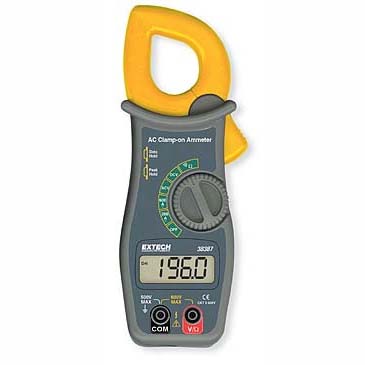

Model 38387 |
- AC current to 600A
- Laqrge 2000 count LCD display
|
| | |
|
Model 383898 |
- True RMS voltage and current measurements
- DC current to 600A
- Large 4000 count LCD display
- Capacitance measurements
- Temperature measurements
- Includes temperature probe
|
| | | SPECIFICATIONS
| Model |
EH38387 (Max. Resolution) |
Basic Accuracy (%rdg+digits) |
EH38389 (Max. Resolution) |
Basic Accuracy (%rdg+digits) |
| AC Current |
200.0A, 600A (0.1A) |
±(1.5% + 4d) |
400A, 600A (Trms) (100mA) |
±(3.0% + 5d) |
| DC Current |
— |
— |
400A, 600A (100mA) |
±(2.5% + 3d) |
| DC Voltage |
600V (1V) |
±(1% + 1d) |
400mV, 4V, 40V, 400V, 600V (0.1mV) |
±(0.5% + 2d) |
| AC Voltage |
600V (1V) |
±(1.5% + 4d) |
4V, 40V, 400V, 600V (Trms) (1mV) |
±(0.8% + 3d) |
| Resistance |
2000Ω (1Ω) |
±(1% + 2d) |
400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (0.1Ω) |
±(0.8% + 4d) |
| Capacitance |
— |
— |
40nF, 400nF, 4μF, 40μF, 100μF |
±(3.5% + 5d) |
| Temperature |
— |
— |
-4 to 1400°F, -20 to 760°C (1°F/°C) |
±(3.0% + 3°F/°C) |
| Continuity |
Beeper ≤50Ω |
Beeper ≤30Ω |
| Power |
9V battery |
9V battery |
| Dimensions |
3.1 x 8 x 1.6" (79 x 203 x 41mm) |
3.1 x 8 x 1.6" (79 x 203 x 41mm) |
| Weight |
6.5oz (185g) |
6.5oz (185g) |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| EH38387 |
|
38387 |
|
AC Clamp Meter |
|
Yes |
|
127,440 |
| EH38389 |
|
38389 |
|
True RMS AC/DC Clamp Meter |
|
Yes |
|
215,978 | | |
|
|
 | |
 |
|
 |
|
