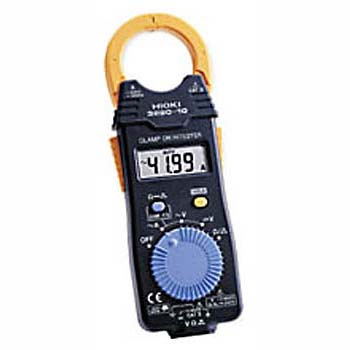

| Clamp-on Multimeter including battery, carrying case, test leads and manual |
SPECIFICATIONS
|
HK328010 and HK328020 with True RMS |
| Function |
Range (Accuracy) |
| AC Current (50/60 Hz) |
42.00/420.0/1000A (±1.5% rdg. ±5 dgt.) |
| DC Voltage |
420.0 m/4.200/42.00/420.0/600 V (±1.3% rdg. ±4 dgt.) |
| AC Voltage (50 to 500 Hz) |
4.200/42.00/420.0/600 V (±2.3% rdg. ±8 dgt.) |
Resistance
(open terminal voltage 3.4 V max.*1) |
420.0/4.200 k/42.00 k/420.0 k/4.200 M/42.00 |
| MΩ (±2.0% rdg. ±4 dgt. *2) |
Continuity
(open terminal voltage 3.4V max.) |
420.0Ω (±2.0% rdg. ±6 dgt.) |
| (Buzzer sounds at approx 50 Ω or less) |
| *1. at 420 Ω (4.2k 0.7V (typ.) 42k to 42M 0.5V (typ.) *2. at 420 to 420kΩ. |
| (4.2MΩ ±5.0% rdg. ±4 dgt. 42 MΩ ±10.0% rdg. ±4 dgt.) |
| Sampling Rate |
2.5 times/sec (Fast), 1 times/3 sec (Slow) |
| Max. Usable Circuit Voltage |
600Vrms |
Max. Allowable Current: 2000 A AC rms cont. |
| Applicable Standards |
Safety - EN61010-1:1993 + A2:1995 CAT III 600V (AC A), CAT II 600V (AC/DC V), ULc 3111-1 (in process); EMC - EN55011/EN50082-1 |
| Power Source |
CR2032 battery X1 (3V DC) |
| Continuous Operating Time |
approx. 150 hours |
| Dimensions and Weight |
Approx. 57 W x 175 H x 16 D mm, 100 g |
| (Approx. 2.2" (W) x 6.9"(H) x 0.6" (D), 3.5 oz.) |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| HK328010 |
|
3280-10 |
|
Clamp-on Multimeter including battery, carrying case, test leads and manual |
|
Yes |
|
213,840
|
| HK328020 |
|
3280-20 |
|
Clamp-on Multimeter with True RMS including battery, carrying case, test leads and manual |
|
Yes |
|
321,840
|
| |
|
|
 | |
 |
|
 |
|
