| The economical Fluke 7-600 is ideal for first-level electrical troubleshooting. The compact design |

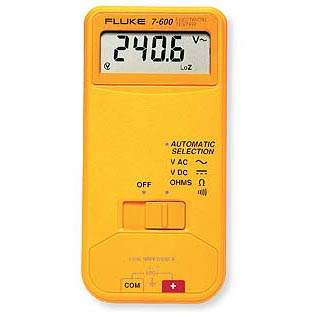

The economical Fluke 7-600 is ideal for first-level electrical troubleshooting. The compact design and slide switch offer one-handed operation.
Auto Selection simplifies voltage measurements in power environments. When measuring ohms/continuity with more than 4.5 volts present across the input jacks (intentional or not) the meter automatically switches to measuring ac or dc volts, whichever is greater. Input impedance is approximately 2 kΩ to 100 kΩ, helping determine if voltage is from leakage (so-called "ghost" voltages) or a hard connection. Overload protection is provided in all measurement modes |
| |
|
Features |
- 4000 count digital display
- Automatic readings of volts AC
- Automatic readings of volts DC
- 400 Ohm Range/Continuity beeper
- TL75 Test Leads included with meter
- High visibility yellow plastic housing makes it easy to locate on the job or in your toolbox
- Simply turn on and use
- Safety Conformance: The 7-600 has been tested and approved for Protection Class II requirement of UL3111, TUV, ANSI/ISA-S82, CSA C22.2 No. 1010-1-1992, and VDE 0411
|
| | | SPECIFICATIONS
| Function |
Range and Resolution |
Best Accuracy |
| DC Volts |
40.00V, 400.0V, 600V |
± (1.5% +1) |
| AC Volts |
40.00V, 400.0V, 600V |
±(2.9% +3) |
| Ohms |
400.0W |
± (1.5% +2) |
| Battery Life |
Alkaline, 650 hours continuous, sleep mode |
| Size (without holster) |
5.55" L x 2.75" W x 1.35" D |
| Weight |
286 gm (10 oz) Two year warranty |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| FL7600 |
|
7-600 |
|
Electrical Tester |
|
Yes |
|
192,240 |
| The Fluke7-600 comes with TL75 Hard Point Test Leads, a 9 volt battery (installed) and owners manual. |
| |
|
|
 | |
 |
|
 |
|
