BD422114 Insulation Multimeter
    · 고객선호도 :
    · 제조사 : DAVIS
    · 제품번호:BD422114
    · 시중가격 : 원
    · 판매가격 : 원
    · 포 인 트 : 점
    · 수 량 : 개


■
회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■
배송은 평균 2~3일정도 예상됩니다.
                    (0)                     (0)                     (0)
BMM503 Advanced feature contractor/service technician insulation tester and multimeter.
BMM503 Advanced feature contractor/service technician insulation tester and multimeter. Offers voltage ranges of 250, 500, and 1000 V.

BMM2000 With Milliamp and frequency.

BMM2500 Top of the range contractor/service technician insulation tester and multimeter featuring result storage, printing, and downloading. Offers the same voltage ranges as the BMM2000.

BMM80 High spec low voltage/specialty application insulation tester and multimeter. Features 50, 100, 250, 500, and 1000 V insulation ranges.

BMM2080 Advanced feature low voltage/specialty application insulation tester and multimeter. Like the BMM80, it offers voltage ranges of 50, 100, 250, 500, and 1000 V.

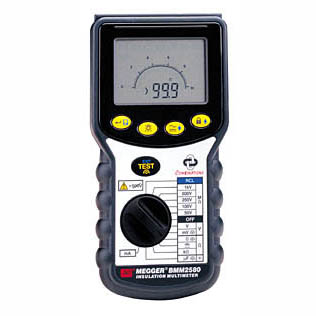

BMM2580 Top of the range low voltage/specialty application insulation tester and multimeter. Features include result storage, printing and downloading. Voltage ranges of 50, 100, 250, 500 and 1000 are also available in this model.

All instruments supplied with the SP1 Remote Switch Probe for hands-free operation.


Features
  • Patented analog and digital displays
  • Complete multimeter capability — Voltage measurement, Current, Frequency and Low-resistance measurement
  • mV transducer input
  • Selectable locking test button
  • Auto-Discharge Facility
  • 3 Year Warranty
  • Live Circuit Warning
  • User selectable LCD backlight
  • Auto Shut Off
  • Test Result Storage
  • RS232 9 pin male D connector
  • Printer Output
  • Datalogging, storage and downloading
  • Waterproof and dustproof to IP54

SPECIFICATIONS

Insulation Measuring range

 BD422115: 0.01 MΩ to 10 GΩ (Digital), 0 to 100 GΩ (Analog)
BD42270 and BD422112: 0.01 MΩ to 20 GΩ (Digital), 0 to 100 GΩ (Analog)
BD422114, BD422111, BD422113: 0.01 MΩ to 200 GΩ (Digital), 0 to 100 GΩ (Analog)
EN61577 operating range 0.10Ω to 99.9 Ω (0.10MΩ to 1,000 MΩ on BD422115 only)
Accuracy ±2% ±2 digits
Continuity Open circuit voltage 5 V ±1 V
Continuity Test current 210 mA ±10 mA (0 to 2Ω)
Continuity Zero offset at probe tips 0.10 Ω typical
Continuity Lead resistance zeroing Up to 9.99 Ω
Resistance Measuring Range 0.01 kΩ to 9.99 MΩ (0 to 100 MΩ on analog scale with Auto Ranging or Range Lock Facility)
Resistance Accuracy ±3% ±2 digits
Resistance Open Circuit Voltage 5 V ±1 V
Resistance Short Circuit Current 25 μA ± 5 μA
Voltage Measuring range ±1 V to ±500 V (0 to 1000 V on analog scale)
Voltage Accuracy 0 to 500 V dc or ac (50/60 Hz) ±2% ±3 digits; 0 to 500 V 400 Hz ac ±5% ±3 digits
Millivolts Measuring Range ±0.1 mV to ±1999 mV (0 to 1000 mV on analog scale)
Millivolts Accuracy 10 mV to 1999 mV dc or ac (50/60 Hz) ±2% ±3 digit; 0.1 mV to 10 mV dc or ac (50/60 Hz) ±2% ±5 digits;
10 mV to 1999 mV ac (16 to 460 Hz) ±5% ±3 digits; 0.1 mV to 10 mV ac (16 to 460 Hz) ±5% ±5 digits
dc Millivolts Zeroing Up to 9.9 mV
Capacitance Measuring Range (BD422114, BD422111, BD422113) 0.1 nF to 9.99 μF
Capacitance Accuracy (BD422114, BD422111, BD422113) 3% ±2nF ±2 digits
Capacitance μF Zeroing (BD422114, BD422111, BD422113) Up to 10 nF
Milliamps Measuring Range (BD42270 and BD422112) 0.1 mA to 500 mA (0 to 1000 mA on analog scale)
Milliamps Accuracy (BD42270 and BD422112) 10 mA to 1999 mA dc or ac (50/60 Hz) ±2% ±3 digit; 0.1 mA to 10 mA dc or ac (50/60 Hz) ±2% ±5 digits;
10 mA to 1999 mA ac (16 to 460 Hz) ±5% ±3 digit; 0.1 mA to 10 mA ac (16 to 460 Hz) ±5% ±5 digits
Frequency Measuring Range & Accuracy (BD42270 and BD422112) 16 Hz to 460 Hz ±1% ±1 digit
Battery Type 6 x 1.5 V Alkaline cells IEC LR6 Battery Life: Typically 3000, 5 second 1-kV tests
Dimensions/Weight 1.77 H x 8.66 W x 4.33 D in. (45 H x 220 W x 70 D mm)/1.63 lbs (742 g)
CAT NO. MODEL DEscRIPTION AVAIL PRICE
BD422114   BMM80   INSULATION MULTIMETER WITH CAPACITANCE MEASUREMENT 50,100,250,500,1000V   Yes   2,581,200



Includes test lead set, carrying case, switch test probe SP1 and download manager software.
BD422115   BMM503   250/500/1000 V Megger® Insulation and Continuity tester   Yes   1,490,400
BD42270   BMM2000   INSULATION MULTIMETER WITH MILLIAMP AND FREQUENCY MEASUREMENT 250,500,1000V   Yes   1,620,000



Includes test lead set, carrying case, switch test probe SP1 and download manager software.
BD422111   BMM2080   INSULATION MULTIMETER WITH CAPACITANCE MEASUREMENT 50,100,250,500,1000V   Yes   2,710,800



Includes test lead set, carrying case, switch test probe SP1 and download manager software.
BD422112   BMM2500   INSULATION MULTIMETER WITH MILLAIMP AND FREQUENCY MEASUREMENT 250,500,1000V   Yes   1,836,000



Includes test lead set, carrying case, switch test probe SP1 and download manager software.
BD422113   BMM2580   INSULATION MULTIMETER WITH MILLIAMP MEASUREMENT 50,100,250,500,1000V   Yes   2,926,800



Includes test lead set, carrying case, switch test probe SP1 and download manager software.
