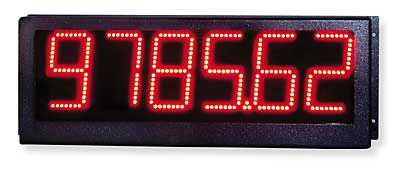

| Outdoor display featuring analog signal inputs W/a selection of four signal conditioner cards to display DC |
Series A
Process Display
Outdoor display featuring analog signal inputs with a selection of four
signal conditioner cards to display DC and AC voltage & current,
temperature, process (4/20mA) and load cell to a maximum of ±99,999.
This display is fully scalable and easily programmed. Peak hold, 60
readings per second and selectable decimal point are standard.
Excitation output power is provided for your transmitter.
Series C Counter/Timer
This display features pulse type signal inputs to display
rate/frequency, period, count/total, stopwatch and quadrature from logic
signals, sensors and encoders to a maximum of ±999,999. This display is
fully scalable and easily programmed. Peak hold, 60 readings per second
and selectable decimal point are standard. Excitation output power is
provided for your sensor. |
| |
|
Features
|
- Outdoor,
super-bright LED digits
- NEMA-4X
aluminum enclosure
- Choice
of signal inputs
– DC Voltage or Current
– AC Voltage or Current
– Process 4/20mA, 0/10V etc.
– Strain Gauge and 4/6 wire Load Cell
– Temperature, RTD and Thermocouple
- –
Rate, Tachometer Frequency
– Total & Count
– Stopwatch Timing
– Quadrature Position & Rate
- Easy
setup and scaling
- Universal
115/230Vac display power
- Two
year warranty
|
| |
|
Options
|
- Dual
setpoints with 10A relays
- Analog
Output (0/10V or 4/20mA)
- Communications
(RS232 or RS485)
|
| |
|
SPECIFICATIONS
| Accuracy |
.01% of
full scale ±2 counts |
| Dimensions |
25"L x 8
5/8"H x 5 5/8" D |
| Temperature Range |
0°C to 55°C |
| Operating Power |
85 to 264Vac and 90
to 370Vdc |
| Excitation Output |
5V, 10V & 24V
selectable |
Series A Signal
Inputs
(fully scalable) |
DC & AC volts:
200mV, 2V, 20V, 200V & 660V
DC & AC amps: 2mA, 20mA, 200mA & 5A
Process: 4/20mA, 1/10V etc.RTD: 100-ohm PT -331 to +1562°C & -202
to 850°C
Thermocouple: Types J, K, N, T, E, S & R |
Series C Signal
Inputs
(fully scalable) |
Dual Channel pulse,
line frequency, logic level, open collector, contact closure &
quadrature signals from quadrature encoders |
| Output
Options |
| MDR Dual Relays |
10A, Form-C with
latching & band deviation setup |
| MAO Analog Output |
Selectable 4/20mA
or 0/10V isolated outputs fully scalable to thedisplayed reading |
| M232 Communications |
Per RS232
standards, selectable baud rate |
| M485 Communications |
Per RS45 standards,
full duplex, selectable baud rate |
| CAT
NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| EN60720 |
|
M5WHHHDC* |
|
Mighty-5, DC
Volts/Amps |
|
Yes |
|
2,589,840
|
| Note,
for these models (*), specify the range required (see specifications)
i.e. 2Vdc, 5Aac etc |
| EN60721 |
|
M5WHHHE |
|
Mighty-5,
Process 4/20mA |
|
Yes |
|
2,589,840
|
| EN60722 |
|
M5WHHHAC* |
|
Mighty-5, AC
Volts/Amps |
|
Yes |
|
2,665,440
|
| Note,
for these models (*), specify the range required (see specifications)
i.e. 2Vdc, 5Aac etc. |
| EN60723 |
|
M5WHHHT* |
|
Mighty-5, RTD
& Thermocouple |
|
Yes |
|
2,589,840
|
| Note,
for these models (*), specify the range required (see specifications)
i.e. 2Vdc, 5Aac etc. |
| EN60724 |
|
M5WHHHLC |
|
Mighty-5,
Load Cell |
|
Yes |
|
2,708,640
|
| EN60725 |
|
M5CWHHHC1 |
|
Mighty-5,
Rate/Frequency/Tachometer |
|
Yes |
|
2,589,840
|
| EN60726 |
|
M5CWHHHC3 |
|
Mighty-5C,
Count/Total |
|
Yes |
|
2,589,840
|
| EN60727 |
|
M5CEWHHHC5 |
|
Mighty-5C,
Stopwatch Timing |
|
Yes |
|
2,687,040
|
| EN60728 |
|
M5CWHHHQ |
|
Mighty-5C,
Quadrature Distance |
|
Yes |
|
2,473,200
|
| EN60729 |
|
M5CWHH2RD |
|
Mighty-5C,
Serial RS232 Remote Display |
|
Yes |
|
2,365,200
|
| EN60730 |
|
M5CWHH4RD |
|
Mighty-5C,
Serial RS485 Remote Display |
|
Yes |
|
2,408,400
|
| EN60731 |
|
MDR |
|
OPTIONAL
Dual 10A Setpoint Relays
FOR Large Digital Displays |
|
Yes |
|
172,800
|
| EN60732 |
|
MAO |
|
OPTIONAL
Analog Output, 4/20mA or 10V
FOR Large Digital Displays |
|
Yes |
|
194,400
|
| EN60733 |
|
M232 |
|
OPTIONAL
Communications, RS232
FOR Large Digital Displays |
|
Yes |
|
140,400
|
| EN60734 |
|
M485 |
|
OPTIONAL
Communications, RS485
FOR Large Digital Displays |
|
Yes |
|
183,600
|
| |
|
|
 | |
 |
|
 |
|
