| All output modules are packaged separately and must be installed by the user. |
| * Note: Output modules ARE NOT supplied with the controller. All output modules are packaged separately and must be installed by the user. When selecting the controller, be sure to purchase the appropriate output module for the main control output and if necessary, the alarm output(s), the cooling output, and valve positioner outputs. The controller can be fitted with any combination of output modules. The logic/SSR Drive Module is a switched DC source, intended to drive the DC input of an SSR power unit. It should never be connected to line voltage. |
| |
|

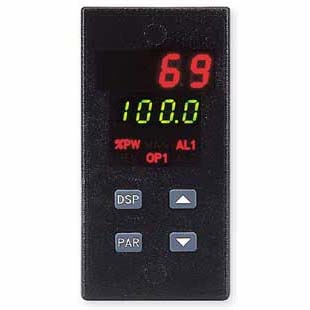

Features |
- Accepts 10 different types of temperature sensor inputs (Thermocouple Types T, E, J, K, R, S, B, N, -5 to 56mV, 100 Ohm Platinum RTD, 120 Ohm Nickel RTD)
- Full PID control with reduced overshoot
- Status indicators for outputs and control modes
- Programmable user input (digital) for added flexibility
- Manual/Automatic and Local/Remote setpoint control modes
- Setpoint ramping for process start-up.
- Field replaceable and interchangeable output modules (Relay, Logic/SSR Drive and Triac)
- 100 msec sampling period with 0.15% accuracy
- On-demand auto-tuning of PID control settings
- Dual LED displays for simultaneous indication of temperature and setpoint, second analog input or heater curren
|
| | | SPECIFICATIONS
|
Display |
Dual 4-digit |
| Power |
115/230 VAC (+10%, -15%), |
| 48 to 62 Hz, 10 VA, |
| switch selectable |
| Controls |
Four front panel push buttons for modifying and setup of controller functions and one external input for parameter lockout or other functions. |
| Environmental Conditions |
Operating Temperature Range: 0 to 50°C |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| RLTCU10000 |
|
TCU |
|
1/8 DIN Temperature Control Unit, Base Unit |
|
Yes |
|
581,040 |
| RLTCU10001 |
|
TCU |
|
1/8 DIN Temperature Control Unit, Alarm* |
|
Yes |
|
699,840 |
| RLTCU10002 |
|
TCU |
|
1/8 DIN Temperature Control Unit, Cooling Output* & Alarm* |
|
Yes |
|
721,440 |
| RLTCU10104 |
|
TCU |
|
1/8 DIN Temperature Control Unit, Remote Setpoint, Alarms* & RS-485 |
|
Yes |
|
1,023,840
|
| RLTCU10204 |
|
TCU |
|
1/8 DIN Temperature Control Unit, Heater Current Monitor, Alarms and RS485 |
|
Yes |
|
937,440
|
| RLTCU7001 |
|
TCU |
|
1/8 DIN Temperature Control Unit, Alarm* & Analog |
|
Yes |
|
807,840 |
| RLTCU7002 |
|
TCU |
|
1/8 DIN Temperature Control Unit, Cooling*, Alarm* & Analog |
|
Yes |
|
829,440 |
| RLTCU7004 |
|
TCU |
|
1/8 DIN Temperature Control Unit, Analog, Alarm* & RS-485 |
|
Yes |
|
959,040 |
| RLTCU7005 |
|
TCU |
|
1/8 DIN Temperature Control Unit, Analog, Cooling* & RS-485 |
|
Yes |
|
980,640 |
| RLTCU1708 |
|
TCU |
|
1/8 DIN Temperature Control Unit, Remote Setpoint, Analog & Alarm*, remote setpoint |
|
Yes |
|
980,640
|
| RLOMD00000 |
|
|
|
OPTIONAL Relay Module, User Installed FOR Temperature Control Unit |
|
Yes |
|
30,240 |
| RLOMD00001 |
|
|
|
OPTIONAL Triac Module, User Installed FOR Temperature Control Unit |
|
Yes |
|
58,320 |
| RLOMD00003 |
|
|
|
OPTIONAL Logic/SSR Drive Module, User Installed FOR Temperature Control Unit |
|
Yes |
|
30,240 |
| RLRLY50000 |
|
|
|
OPTIONAL SSR Power Unit, User Installed FOR Temperature Control Unit |
|
Yes |
|
140,400 |
| RLCT005001 |
|
|
|
OPTIONAL 50:0.1 Ampere Current Transformer, User Installed FOR Temperature Control Unit |
|
Yes |
|
114,480
|
| RLCT004001 |
|
|
|
OPTIONAL 40:0.1 Ampere Current Transformer, User Installed FOR Temperature Control Unit |
|
Yes |
|
105,840
| | |
|
|
 | |
 |
|
 |
|
