Handy sensor with handle. Suitable for control measurements at high ambient temperatures |
FHA636HRx Capacitive
Humidity Sensor Type
¡Ü Handy sensor with
handle.
¡Ü Suitable for
control measurements at high ambient
temperatures.
¢Ñ Not suitable for stationary
(sensor handle max. 60 ¡ÆC).
Types: |
FHA636HR1 |
Length L = 250mm,
Operative range -50 ¡¦ 150¡ÆC |
FHA636HR2 |
Length L = 400mm
Operative range -50 ¡¦ 200¡ÆC |
Accessories:
ZA9060VK2 Extension
cable, 2m long
ZA9060VK4 Extension cable, 4m long
|
Technical Data: |
Operative range :
Sensor tip :
Sensor handle : |
-50 to +150 ¡ÆC
(200 ¡ÆC)
-20 to +60 ¡ÆC |
Humidity Measuring Circuit |
|
Measuring range: |
0 ¡¦ 100% r.H. |
Sensor: |
capacitive |
Accuracy: |
¡¾1.5% r.H. at nomin. temperature
¡¾2.5% r.H.< 10% and > 90% |
Reproducibility: |
0.5% r.H. |
Nominal temperature: |
23¡ÆC ¡¾2¡ÆC |
Response time T63: |
15s without filter
at 1m/s air speed |
Temperature Measuring Circuit |
Sensor: |
Pt100, 1/3 Class B |
Accuracy: |
¡¾0.3K at nominal temperature |
Reproducibility: |
0.1K |

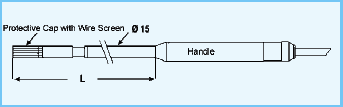

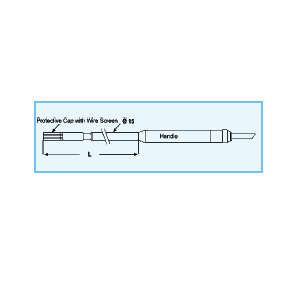

Mechanical construction |
Sensor tube: |
heat resistant plastic
¨ª 15mm |
Protective cap: |
wire screen |
Sensor handle: |
180mm long, |
Cable: |
2m long, ALMEMO¢ç connector |
|
| |
|
|
| |
|
