Sensitive sensor with diamond bearing and precise adjustment for high accuracies.

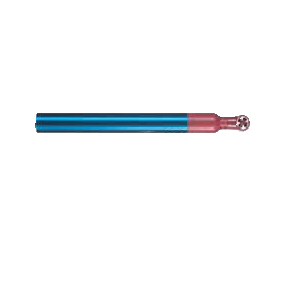

FV A915 S220
Rotating Vanes for Air and Gases Type

¡Ü Sensitive sensor with diamond bearing and precise
adjustment for high accuracies.
¡Ü The aluminium rotating vanes have stream-lined measuring heads made from plastic material (polysulfone).
¡Ü The shafts are, as standard, guided in protected, oiled beryllium-brass bearing sleeves and supported
in tips made from special case-hardened steel.
¡Ü Particularly suitable for use in climatology.
¡Ü Equipped with snap-on measuring heads and, as a result, very easy to service.
Technical Data:
Accuracy: ¡¾1% of final val.
¡¾3% of measured val.
Max. resolution: 0.01m/s
Nominal temperature: 22¡ÆC ¡¾2K
Operative range: -20 to +140¡ÆC
Meas. head diameter: 11mm, head replaceable
Inlet opening: starting from 15mm
Sensor length: 165mm
Cable length: 1.5m, ALMEMO¢ç connector

Type:
FVA915S220 Meas. range: 0.5 to 20m/s

Accessories:
ZV9915S220 Spare snap-on head 20 m/s
ZV9915S240 Spare snap-on head 40 m/s
ZV9915VR3 Extension set ¨ª 15mm,
4 x 255mm
ZV9915TV Telescope extension
¨ª 15¡¦24mm, 330/1010mm
