| For measuring the volume flow rate or for dosing tasks with small flow rates. |
FVA915VTH
Axial turbine flowmeter for liquids Type
● For measuring the volume flow rate or for dosing
tasks
with small flow rates.
● Extraordinary
compact design.
● Wide, usable
measuring range.
● Various options
for operation:
Cooling water flow, medical technology, plastics industry,
solar systems, baker's equipment, machine tools, catering
equipment, photographic laboratory equipment, dispensers, dosing equipment,
cooling equipment, heating applications, calorimetry.
|
| Technical Data: |
| Nominal diameter |
DN 15 |
| Measuring range |
2 to 40 l / min
continuous load max. 20 l/min |
| Measuring accuracy |
±1% of measured value |
| Reproducibility : |
± 0,2 % |
| Signal output |
from 0.3 l/min |
maximum size of particles
in medium |
0.5 mm |
maximum temperature
of medium
|
85°C |
| Nominal pressure |
PN10 |

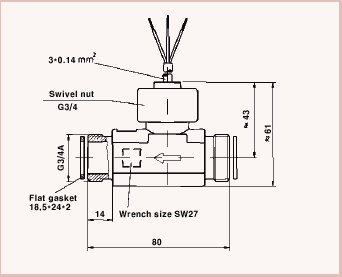

| Process connection |
G ¾" external thread and
union nuts |
| Pressure loss in bar |
Δp = 0.00145 x Q2 (Q in l/min)
approx. 0.6 bar at 20 l / min
approx. 2.3 bar at 40 l / min |
| Protection system |
IP 54 |
Output signal
Pulse rate / K factor
Resolution |
855 pulses / liter
1.2 ml / pulse |
| Signal form |
rectangular signal, NPN,
open collector |
| Measuring transducer |
Hall sensor |
| Supply voltage |
4,5 ... 24 V DC
(from ALMEMO® device) |
| Electrical connection |
PVC cable, shielded
(Tmax = 70°C)
with ALMEMO® connector |
| Materials |
pipe section
FV A915 VTH M
FV A915 VTH K |
brass
plastic PPONoryl GFN3 |
| Flat gasket |
NBR |
| Turbine cage |
PEI ULTEM |
| Rotating vane |
PEI ULTEM |
| Rotor complements |
hard ferrite magnets |
| Axle / bearing |
axle Arcap AP1D
with hard metal pins
in saphire bearings |
| Bearing support |
Arcap AP1D |
| Sensor |
PPO Noryl GFN3 |
| O-ring |
NBR |
| Knurled swivel nut* |
PA GF 30 |
* not coming into contact with the medium
| Types: |
| incl. connecting cable, 6m long with
ALMEMO® connector |

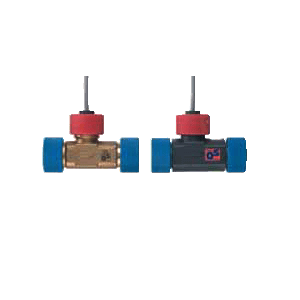

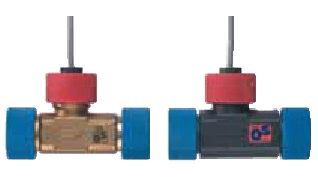

| FVA915VTHK |
Turbine body made of plastic |
| FVA915VTHM |
Turbine body made of brass |
|
| |
|
|
 | |
 |
|
 |
|
