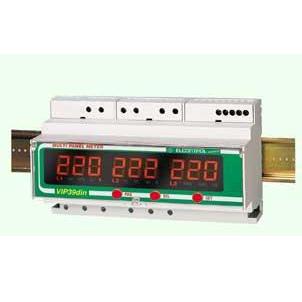

Vip39din is a 9 DIN module multi-functional instrument ideal for the measurement and display of electrical parameters.
The large clear led displays showing the parameters and values are easily read under all lighting conditions.
The instrument displays up to 22 parameters (see table), and is suitable for installation in single phase, two phase and three phase systems. Connection is via sturdy 2.5 mm² terminals and 5A secondary CTs for current measurement.
Operation is via a simple pushbutton located on the front panel, with set up keys hidden behind a hinged cover.

STRUMENTS ADVANTAGE

Replaces traditional analogue instruments with one digital package.
Improved accuracy and reliability.
Simplified installation reducing costs.
Competitive pricing.
Superior performance on distorted waveforms

TECHNICAL CHARACTERISTICS

• Maximum size (mm): instrument: 157.5 X 73 X 90. (9 DIN module)
• Power supply: from network 230 V ~ or 115 V ~ ± 10% @ 50/60 Hz (4 VA)
• Display: Seven-segment 13 mm red LED’s , 3 digit on 1 line
• Voltmeter inputs: VL1, VL2, VL3, N up to 430 V ~ phase-neutral, 750 V ~ phase-to-phase, 35 ÷ 400 Hz.
• Voltmeter input impedance: 2 M

• Voltage input overload: max 850 V phase-neutral
• Amperometric inputs: AL1, AL2, AL3. Consumption 1 VA.
Three /5A external curr.transf. required 3 PH And n, 3 PH
• Amper. input overload: max 7 A ~
• Number of scales: 1 voltage scale, 2 current scales
• Measurements: T.R.M.S. (true effective value) up to 24th harmonic (50 Hz), 20th (60 Hz)
• Precision: 1% reading per V and I; 2% for power
• Suitable for connection to: Single phase or three phase star, three phase delta, or two phase systems
• Weight of instrument: 0.6 Kg
• Protection level: instrument IP20, front panel IP40
• Ambient temperature range: -10°C ÷ + 60°C
• Relative humidity range (R.H.): from 20% to 80%.
• Condensation: non condensing.

FUNCTIONING

At power on, the VIP39din displays the last page selected before power off.
Use the PAG key to scroll through the different measurement pages. To access SETUP mode, press at the same time the PAG and the SEL keys.
The parameters are programmed with the SEL and SET keys.
Use the PAG key to scroll through the various SETUP pages and return to the Measurement page.
The type of connection is configured in SETUP:
3 PH and N (Three phases with neutral, i.e. Star or 4 wires);
3 PH (Three phases without neutral, i.e. Delta or 3 wires);
2 PH = Two - phase.
1 PH = Single - Phase

STANDARDS and REGULATIONS CE

The VIP39din family of products conforms to Directive 89/336/EEC (EMC) and to Directives 73/23/EEC - 93/68/EEC (LVD). It is in compliance with standards IEC 1010-1 430 V for Cat. III and protection level 2 according to IEC 664-664 A (Safety), EN500081-1, EN50082-2 and EN55022 (EMC).

22 Mesures

CHOICE OF THE MODELS

VIP39din: standard model without outputs
VIP39din 4-20 mA: 2 analogue outputs 4-20 mA or 0-20 mA
VIP39din 485: RS485 serial output MODBUS ASCII or BCD or IEEE protocol.
Transmits all the measures listed in the table:
