manual measurements e.g. swimming pools, drinking water.. |
FY96PHEK

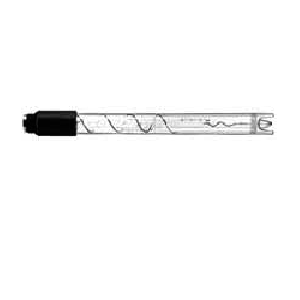

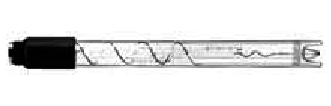

pH One-Bar Measuring Chain Type
Applications:
manual measurements e.g. swimming pools, drinking water ...
Type: |
FY96PHEK |
pH-one-bar measuring chain pH 1 ¡¦ 12,
0 ¡¦ 60¡ÆC for unpressurised operating |
|
Technical Data: |
pH range:: |
1 ¡¦ 12 |
Operating range |
0 ... 13pH / 0 ¡¦ 60¡ÆC |
Operating pressure: |
unpressurised |
Conductivity: |
> 150 ¥ìS / cm |
Diaphragm type: |
glass fiber |
Reference: |
Ag / AgCl (3mol KCl / gel) |
Shaft length: |
125 ¡¾3mm |
Shaft diameter: |
12mm (polycarbon) |
Electrode head: |
plug head SN6 |
|
| |
|
|
| |
|
