| You can place the testostor 171-1 data logger beside the goods |

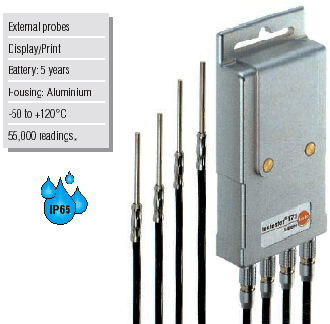

Professional data loggers with external probes
 |

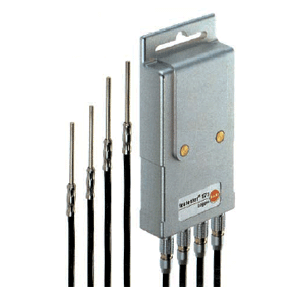

testostor 171-4 with up to 4 external
temperature probe connections is used for simultaneous temperature measurement
at different locations e.g. in production processes or in storage areas.
You can place the testostor 171-1 data logger beside the goods and attach
the separate probe to doors or refrigeration appliances up to 12 m away.
Air moisture can also be checked, if required.
※ ● On-site application:
Testo software for Palm OS®
replaces laptop/PC
● Tamperproof measured results
● Clear printout on location on the
Testo printer
|
Logs temperatures e.g. in refrigeration units. testostor
171-1 data logger with display attached,shows fluctuations in temperature.
Logs temperature fluctuations in switching units withtestostor 171-4 |
| testostor
171-1 |
Int.:
°C + Ext.: °C or %RH/°C
testostor 171-1, temperature data logger with °C/%RH probe
connection, incl. starting magnet,battery and calibration protocol
Part no. 0577 1715
|
|

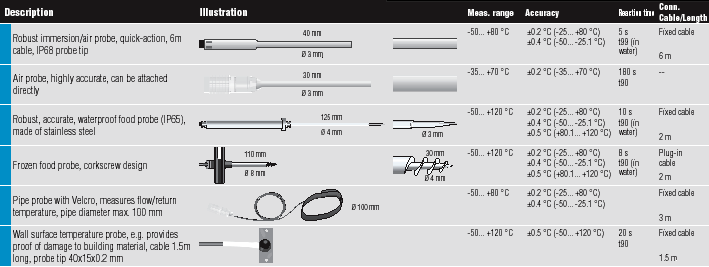

| Suitable probes at a glance |
 |
| Part
no. |
0610
1720
270,000 원 |
0610
1722
250,000 원 |
0610
2217
370,000 원 |
0610
3217
490,000 원 |
0610
4617
255,000 원 |
0628
0007
344,000 원 |
|
Range of humidity probes for testostor 171-1, see Chapter on humidity,
testostor 171-6
Practical accessories and recommended sets
Display with print option, can be
attached to data logger
Part no. 0554 0175 722,000
원
Display can be attached to data
logger
Part no. 0554 0176 553,000
원 |
Testo printer with 1 roll of thermal
paper and 4 AA size batteries
Part no. 0554 0545 456,000
원 |
| testostor 171-1,
Standard set |
 |
testostor 171-1, temperature data logger with °C/%RH
probe connection, incl. starting magnet, battery and
calibration protocol
Robust immersion/air probe
ComSoft 3
Interface
Transport case (plastic) |
ComSoft 3 - Professional with data management
Incl. database, analysis and graphics function, data analysis, trend curve
Part no. 0554 0830 617,000
원
Please order interface separately |
※ testostor 171 data logger, connection for Palm OS®
(Palm OS® not included)
In connection with ComSoft 3, Part no.: 0554 0830
Part no. 0554 0805 485,000
원
|
| testostor 171-4, 4 x temperature
measurement at different locations |
|
testostor 171-4, temperature data logger, 4 channels, with
starting magnet, battery and calibration protocol
Robust immersion/air probe
Robust immersion/air probe
Robust immersion/air probe
Robust immersion/air probe
ComSoft 3
Interface
Transport case (plastic) |
| Ordering
data for Accessories |
Part
no. |
Display can be attached to data
logger
For quick checks on location |
0554 0176
553,000 원 |
Display with print option, can be attached to data
logger
For quick checks on location |
0554
0175
722,000 원 |
Testo printer with 1 roll of thermal paper and 4
AA size batteries
Prints readings on location |
0554 0545
456,000 원 |
Recharger for printer (with 4 standard rech. batt.)
Rechargeable batteries are recharged externally |
0554 0110
132,000 원 |
| Spare thermal paper for printer (6 rolls) |
0554 0569
38,000 원 |
Spare thermal paper for printer (6 rolls)
Measurement data documentation legible for up to 10 years |
0554 0568
43,000 원 |
| Optical alarm display for data logger, battery-operated
Warns if limits have been exceeded |
0628 0025
571,000 원 |
| Holder with lock for data logger. Theft-proof |
0554 1782
92,000 원 |
Lock for attached display
Suitable for holder 0554 1782
|
0554 1789
74,000 원 |
| ※testostor 171 data logger, connection for Palm OS®
In connection with ComSoft 3, Part no.: 0554 0830 |
0554 0805
485,000 원 |
ComSoft 3 - Professional with data management
Incl. database, analysis and graphics function, data analysis, trend
curve |
0554 0830
617,000 원 |
※ComSoft 3 - For requirements in accordance with
CFR 21 Part 11
Incl. database, analysis and graphics function, data analysis, trend
curve |
0554 0821
2,805,000 원 |
| Interface, attachable to data logger |
0554 1781
112,000 원 |
Spare battery for testostor 171
Quick and easy battery replacement |
0515 0018
87,000 원 |
| Transport case (plastic) for data loggers (max. 5
off) and accessories |
0516 0117
316,000 원 |
ISO calibration certificate/Temperature
Temperature data logger; calibration points selectable from -30 to
+180°C |
0520 0141 |
ISO calibration certificate/Temperature
Temperature data logger; calibration points -8°C; 0°C; +40°C per channel/instrument
|
0520 0171
230,000 원 |
DKD calibration certificate/Temperature
Data logger, transmitter, probe without display; cal. points freely
selectable from -80 to +1000°C |
0520 0281 |
|
|
| Technical data |
| Common
data |
Chann. external (var.) |
| Probe
type |
NTC |
| Meas. range |
-50... +120 °C |
Accuracy
± 1 digit |
±0.2 °C (-34.9...
+39.9 °C)
±0.4 °C (+40... +120 °C)
±0.6 °C (-50... -35 °C) |
| Resolution |
0.1 °C (-50...
+120 °C) |
|
|
| testostor 171-1 |
Chann. intern |
| Probe type |
NTC |
| Meas. range |
-35... +70 °C |
Accuracy
± 1 digit |
±0.2 °C (-35... +39.9 °C)
±0.4 °C (+40... +70 °C) |
| Resolution |
0.1 °C (-35... +70 °C) |
|
| Oper. temp. |
-35... +70 °C |
| Storage temp. |
-40... +85 °C |
| Battery type |
Lithium battery |
| Memory |
55000 |
| Dimensions |
131x68x26 mm |
| Weight |
305 g |
| Warranty |
2 years |
Measuring
rate: 2 s to 24 h, selectable
Battery life: Lithium battery up to 5 years
Software: menu-driven from Microsoft Windows 95 / NT 4
Service pack 4 |
|
| Chann. external (var.) |
| Probe type |
Testo humid. sensor, cap. |
| Meas. range |
0... +100 %RH |
Accuracy
± 1 digit |
±2 %RH (+2... +98 %RH) |
| Resolution |
0.1 %RH (0... +100 %RH) |
|
|
| |
|
|
 | |
 |
|
 |
|
