| The compact humidity/temperature logger with display. |
Compact data logger for humidity and temperature
Ambient air logging with immediate display of limits exceeded e.g. during
storage, production
Data analysis on notebook/PC with user-friendly Windows® software. Data
is shown in table or line graph form |

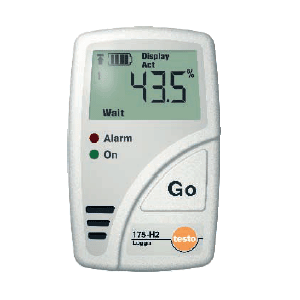

The compact humidity/temperature logger
with display. It provides you with a fast onsite overview of current readings,
the last
values saved, max and min values and the number of times limits were exceeded.
The testo 575 printer provides fast proof of adherence to predefined ambient
storage or production conditions. All of the values collected by the testo
580 data collector are transmitted to your PC for analysis.
● Large display, can also be read at a distance
● Fast documentation with infrared
printer, 6 lines/s
● Collect data using testo 580 and
download to your PC/notebook for
analysis
| testo 175-H2 |
Internal %RH, °C
testo 175-H2, humidity/temperature
logger, 2 channels, with internal sensors, wall holder and
calibration protocol
Part no. 0563 1758
542,000 원 |
|
 |
| Ordering data
for Accessories |
Part
no. |
testo 575 fast printer, incl. 1 roll of thermal paper
and batteries
Infrared thermal line printer with graph function |
0554 1775
780,000 원 |
| Spare thermal paper for printer (6 rolls) |
0554
0569
38,000 원 |
Spare thermal paper for printer (6 rolls)
Measurement data documentation legible for up to 10 years |
0554 0568
43,000 원 |
| Label thermal paper (Testo patent) for testo 575
printer (6 rolls), can be applied directly |
0554 0561
72,000 원 |
| testo 580 data collector including readout holders
for testo 175/177 data loggers |
0554 1778
430,000 원 |
| ComSoft 3 - Basic Set for testo 175, Basic software
With diagram and table function, interface incl. desk-top holder,
PC connection cable |
0554 1759
163,000 원 |
| ComSoft 3 - Professional with data management Incl.
database, analysis and graphics function, data analysis, trend curve
(without interface) |
0554 0830
617,000 원 |
※ComSoft 3 - For requirements in accordance with
CFR 21 Part 11
Incl. database, analysis and graphics function, data analysis, trend
curve (without interface) |
0554
0821
2,805,000 원 |
| Interface for testo 175/177 incl. desk-top holders,
PC connection cable(please also order for ComSoft 3 - Professional) |
0554 1757
149,000 원 |
| Lock for wall holder for testo 175/177 data loggers |
0554 1755
18,000 원 |
| Battery, 3.6 V/0.8 Ah 1/2 AA |
0515 0175
40,000 원 |
| Transport case for up to 5 testo 175 data loggers,
testo 575 printer, testo 580 data collector and accessories |
0516 1750
120,000 원 |
ISO calibration certificate/Temperature
Temperature data logger; calibration points -18°C; 0°C; +60°C
per chan./instr. |
0520 0151
230,000 원 |
ISO calibration certificate/Humidity
Humidity data logger; calibration points 11.3%RH and 75.3%RH
at +25°C; per channel/instrument |
0520 0076
268,000 원 |
DKD calibration certificate/Humidity
Humidity data logger; cal. points 11.3%RH and 75.3%RH at
+25°C; per channel/instrument |
0520 0246
689,000 원 |
|
| Recommended kit: |
testo 175-H2, Starter Set
|
testo 175-H2,
humidity/ temperature logger, 2 channels, with internal sensors, wall
holder and calibration protocol
Lock for wall holder for testo 175/177 data loggers
ComSoft 3 - Basic Set testo 175, Basic software incl. interface, desk-top
holder, PC connection cable |
| Technical data |
| Chann.
intern |
2 |
| Probe type |
Testo humid. sensor, cap.NTC |
| Meas. range |
0... +100 %RH
20... +70 °C |
Accuracy
± 1 digit |
±3 %RH (0... +100 %RH)
±0.5 °C (-20... +70 °C) |
| Resolution |
0.1 %RH (0... +100 %RH)
0.1 °C (-20... +70 °C) |
|
|
| Memory |
16000 |
| Oper. temp. |
-20... +70 °C |
| Storage temp. |
|
| Battery type |
|
| Weight |
|
| Dimensions |
|
| Warranty |
|
Battery life: 2.5 years at a measuring
cycle of 15
min (-10 to +50°C) |
| Measuring cycle: 10 s to 24 h |
| Software: Microsoft Windows 95b
/ 98 / ME / NT4-Sp4 / 2000 / XP |
|
|
| |
|
|
 | |
 |
|
 |
|
