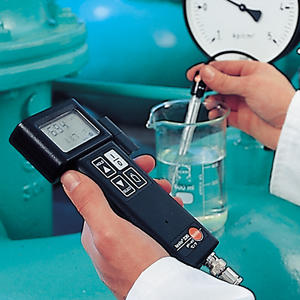

Compact pH/°C measuring instrument
 |
testo 230 combines a complete pH
measuring instrument and a high standard
thermometer in a compact, waterproof
housing. The redox voltage can also be
determined by connecting the redox
electrode type 06.
The instrument has automatic temperature compensation and can be calibrated
in the pH range with standard and also with DIN buffers.
● Latest probe technology for almost every
application
● pH/°C electrodes are connected
via a single plug-in connection
● Easy, user-friendly operation
● Displays calibration data and error
messages
| testo 230 |
testo 230, water analysis instr., with 2 electrode clips and battery
Part no. 0560 2304 641,000
원
|
|
Accurate pH measurement in aqueous solutions such as acids or alkalines
Fast and easy pH analysis e.g. during production |

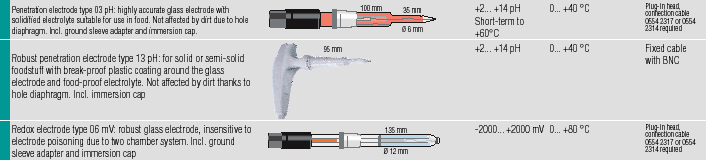

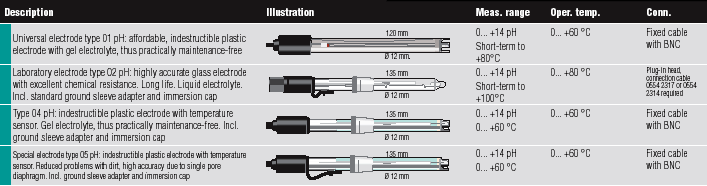

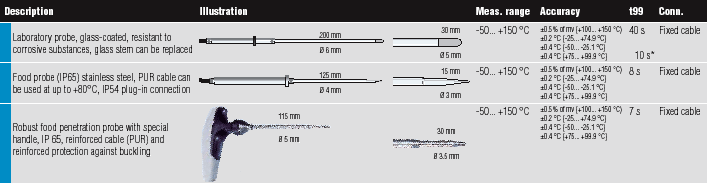

| Suitable probes at a glance |
 |
| Part
no. |
0650
0623
142,000 원 |
0650
1223
245,000 원 |
0650
0823
300,000 원
|
0650
1623
386,000 원 |
0650
0225
384,000 원 |
0650
0245
394,000 원 |
0650
2523
334,000 원 |
|
 |
 |
| Part
no. |
0613
7011
182,000 원 |
0613
2211
206,000 원 |
0613
2411
197,000 원 |
|
Pay less for a set
| testo 230, Affordable
Set |
 |
testo 230, water analysis
instr., with 2 electrode clips and battery
Testo buffer set pH 4, 7; 50 ml each
Universal electrode type 01 pH
Set case (plastic) for measuring instrument, probes and accessories
Part no. 0563 2307
|
|
| testo 230, Food Set |
 |
testo 230, water analysis instr., with
2 electrode clips and battery
Testo buffer set pH 4, 7; 50 ml each
Penetration electrode type 03 pH
Storage solution; 50ml
Connection cable for electrodes with plug-in head, 1m long
Food probe (IP65) stainless steel, PUR cable can be used at up to
+80°C, IP54 plug-inconnection
Set case (plastic) for measuring instrument, probes and accessories
Part no. 0563 2306
|
|
| testo 230, Universal Set |
 |
testo 230, water analysis
instr., with 2 electrode clips and battery
with 2 electrode clips and battery
Universal electrode type 04 pH
Set case (plastic) for measuring instrument, probes and accessories
Part no. 0563 2305
|
|
| testo 230, Food Set for
solid/semi-solid food |
 |
testo 230, water analysis instr., with
2 electrode clips and battery
Testo buffer set pH 4, 7; 50 ml each 13 pH
Storage solution; 50ml
Robust food penetration probe with special handle, IP 65, reinforced
cable (PUR) and reinforced protection against buckling
Transport case (plastic) instrument, probes and accessories
Part no. 0563 2308
|
|
| Ordering
data for Accessories |
Part
no. |
Set case (plastic) for measuring instrument, probes
and accessories
User-friendly arrangement of measuring instrument and accessories
|
0516
0230
103,000 원 |
| Glass pipe for laboratory probe |
0554 7072
65,000 원 |
Connection cable for electrodes with plug-in head,
1m long
S7-BNC plug-in connection |
0554 2317
67,000 원 |
Connection cable for electrodes with plug-in head,
5m long
S7-BNC plug-in connection |
0554 2314
199,000 원 |
Testo buffer set pH 4, 7; 50 ml each
for calibration in acidic range |
0554 2321
34,000 원 |
Testo buffer set pH 4, 7, 10; 50ml each
for calibration in acidic and alkaline range |
0554 2320
48,000 원 |
DIN buffer set 4.008/6.865; 250 ml each
for calibration to DIN in acidic range |
0554 2339
59,000 원 |
DIN buffer set 6.865/9.180; 250 ml each
For calibration to DIN in alkaline range |
0554 2340
59,000 원 |
Storage solution (refill solution for electrode type
02 pH), 50 ml
For electrodes type 01 pH, 02 pH, 04 pH, 06 mV |
0554 2332
25,000 원 |
Storage solution; 50ml
For electrode type 03 pH and type 13 pH |
0554 2318
52,000 원 |
Storage and refill solution; 50ml
For electrode type 05 pH |
0554 2319
52,000 원 |
| Redox standard 358 mV, 50ml |
0554 2333
58,000 원 |
ISO calibration certificate/Water analysis
For pH buffer solutions; calibration points 4 pH; 7 pH; 10
pH |
0520 0007
64,000 원 |
ISO calibration certificate/Water analysis
At 3 pH values over the measuring range |
0520 0037
319,000 원 |
|
|
| Technical data |
| Probe type |
pH electrode |
NTC |
Redox electrode |
| Meas. range |
0... +14 pH |
-50... +150 °C |
-1999... +1999 mV |
Accuracy
± 1 digit |
±0.01 pH
(0... +14 pH) |
±0.5% of mv
(+100... +150 °C)
±0.2 °C
(-25... +74.9 °C)
±0.4 °C
(-50... -25.1 °C)
±0.4 °C
(+75... +99.9 °C) |
±1 mV
(-999... 0 mV)
±1 mV
(0... +999 mV)
±2 mV
(-1999... -1000mV)
±2 mV
(+1000... +1999mV) |
| Resolution |
0.01 pH
(0... +14 pH) |
0.1 °C
(-50... +150 °C) |
1 mV
(-1999... +1999mV) |
| Resolution |
0.01 pH
(0... +14 pH) |
0.1 °C
(-50... +150 °C) |
1 mV
(-1999... +1999mV) |
| Display |
LCD, 2 lines |
| Oper. temp. |
0... +40 °C |
| Storage temp. |
-20... +70 °C |
| Battery type |
9V block battery |
| Battery life |
100 h |
| Dimensions |
168x72x27 mm |
| Weight |
170 g |
| Warranty |
2 years |
| Temperature compensation: man. -10 to
+150°C; auto -50 to +150°C |
|
제품개요
모든 용도를 위한 특수 pH 전극: 산이나 전해액과 같은
액체의 정확한 PH 계측 type 0.5 PH를 이용한 중요 환경의 pH
계측. 보통 사용되는 격막(아주 작은 구멍)은 단백질이
함유된 부유물, 유제 및 용액에 사용시 막히게 됩니다.
새로운 막힘-방지 단일 구멍 격막 (큰 구멍)은 다음을
보장합니다. - 상대적으로 적은 이물질에 의한 문제 -
높은 정확도 레벨 - 짧은 응답 시간 type 03 pH 전극은
용액이나 반용액에서의 함침 계측에 아주 이상적입니다.
구멍 격막 (아주 큰 구멍)은 이러한 용도에 특히
효과적입니다.
|
|
제품기능
음식 제공시 온도 확인 제과점에서와 같이 식품의 중심
온도를 감시 생선과 같은 민감한 식품의 올바른 조리
온도를 확인 음식 배달시 중심 온도를 확인 음식 생산시
온도를 확인
|
|
기술데이터
| 기술데이터 |
testo
230 |
| 센서 |
전도성
측정 셀
|
NTC
센서 |
Calc.
parameter |
| 측정
범위 |
0
mS/cm ~ 2000 mS/cm |
-50
~ 150℃ (-58 ~ 302℃ ) |
+1
~ 200000mg/l NaCl (calc.) |
| 정확도 |
측정치의
1%. (전도성) |
±0.5%
ofmv (100 ~ 150℃
±0.2℃
(-25 ~ -74.9℃)
±0.4℃
(-50 ~ -25.1℃)
±0.4℃
(+75 ~+ 99.9℃
) |
측정치의
1.2% (NaCl) |
| 분해능 |
|
0.1℃
(-50 ~ +150℃) |
0.1mg/l
NaCl(+1 ~ 200000mg/l NaCl ) |
| 디스플레이 |
LCD2
라인 |
| 작동온도 |
0
~ 40℃ |
| 보관
온도 |
-20
~ 70℃ (-4 ~ 158℃ ) |
| 밧데리타입 |
9V
block batery |
| 밧데리수명 |
60시간 |
| 크기 |
168X72X27mm |
| 무게 |
170g |
| 보호
클래스 |
IP54 |
| 보증 |
2년 |
|
| |
