To maintain better flow characteristics when transferring UV inks, coatings

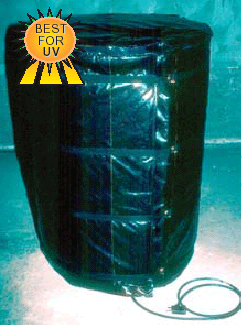

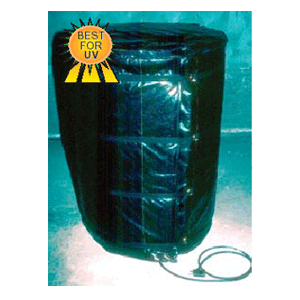

55 GALLON BLANKET DRUM WARMER

To maintain better flow characteristics when transferring UV inks, coatings and adhesives from storage drums, a well-controlled temperature of 120¡ÆF is recommended. The CON-TROL-CURE¢â Blanket Drum Warmer keeps 55 gallon drums of material up to 100¡Æ warmer than surrounding temperatures and uses only 480W of
electricity. The built-in thermostat is set at 120¡ÆF and will maintain that temperature provided the ambient environmental temperature does not drop below 20¡ÆF. Plugs into an ordinary 110V AC circuit.

This efficient Blanket Drum Warmer offers the most uniform distribution of heat available. A total of 7-1/2 square ft of the drum surface is actively heated compared to just 2 square ft on standard belt-type heaters, providing more even heat distribution. The vinyl/fiberglass Blanket Drum Warmer fits snugly around the drum and is secured by adjustable double-D ring straps. A unique heat-retaining insulation cap is firmly secured over the top of the drum and the heat retaining blanket. The 1" fiberglass insulation and outer vinyl jacket direct the heat inward to prevent dissipation into the atmosphere. Other temperature settings can be special ordered.

Part Number Description Units
J013-003 55 GALLON BLANKET DRUM WARMER EACH
