J009-007 PORTABLE 5 GALLON MIXER
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)

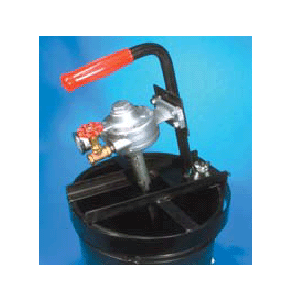

The ring mount Portable 5 Gallon Mixer provides a low center of gravity for steady mixing.
PORTABLE 5 GALLON MIXER

The ring mount Portable 5 Gallon Mixer provides a low center of gravity for steady mixing. Mounts directly on top of or through the lid of an open 5 gallon container. The folding impellers will fit through any opening as small as 1-1/2" diameter and will open during mixing.

J009-007 features a totally enclosed, fan-cooled 2 speed, 1/2 hp electric motor (1725 rpm for heavy material, 1140 rpm for thin materials). The heavy-duty drive operates on 115V AC, 60 Hz single phase. Complete with mixing
shaft and 4-1/2" impeller.

J009-008 features a 3/4 hp air motor for mixing viscosities up to 5,000 cPs. Adjustable speed from 300-3000 rpm. Explosion proof, this unit will not burn out when overloaded or stalled. This lightweight mixer comes complete with mixing shaft, 4-1/2" folding impeller, muffler and speed control valve.

Part Number Description Units
J009-007 PORTABLE 5 GALLON MIXER 1/2 HP ELECTRIC EACH
J009-008 PORTABLE 5 GALLON MIXER 3/4 HP AIR EACH
