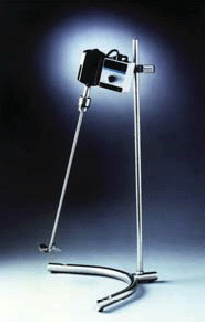

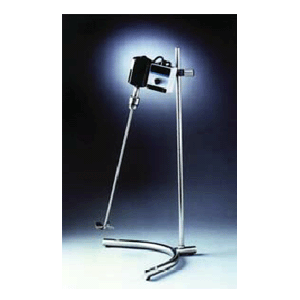

| Laboratory or ink room general purpose mixer for low viscosity fluids. |
 |
GENERAL PURPOSE LOW
VISCOSITY MIXER
Laboratory or ink room general purpose mixer for low viscosity fluids. Fuse-protected,
direct drive features solidstate speed controller (20:1 speed range) for
variable settings of 500-10,000 rpm. Potentiometer controls on/off and speed
settings for single direction mixing. Stand sold separately.
COMPLETE WITH:
● 12"L x 3/8" diameter shaft
● 1-1/2" diameter stainless steel propeller
● 6"L mounting rod,
● Jacobs-style chuck with key
● 6 ft 3-wire cord with grounded plug |
FEATURES:
| ● Speed Range: |
500-10,000 rpm |
| ● Max Torque: |
9.5"/oz (up to 5,000 rpm) |
| ● Motor: |
1/20 hp |
| ● Shaft Size: |
3/8"-5/16" |
| ● Dimensions: |
5-5/8"W x 4-1/4"H x 3-3/8"D |
| ● Power: |
115V AC, 50/60 Hz |
| ● Weight: |
5 lbs (2.3 kg) |
| ●
For mixing viscosities up to 100 cPs (up to 1 gallon) |
OPTIONS:
● Corrosion-resistant, cast steel support stand with
28"H x 3/8" rod
● Wide assortment of universal stainless steel propellers,
mixing blades and stirring shafts |
| Part Number |
Description |
Units |
| J009-050 |
LOW VISCOSITY MIXER |
EACH |
| J009-052 |
SUPPORT STAND |
EACH |
| J009-055A |
DOUBLE CLAMP HOLDER |
EACH |
| |
|
|
 | |
 |
|
 |
|
