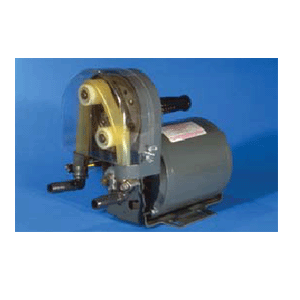

MINI PERISTALTIC PUMP
The CON-TROL-CURE® Mini Peristaltic Pump is ideal for
small volume applications of medium viscosity inks and coatings. It provides
a sure method of pumping materials without contamination. 2 rollers on a
ball bearing pulley rotate at approximately 700 rpm, providing 1400 pumping
impulses/
minute. Materials are squeezed through the tubing at a flow rate of 2 GPM.
The pump is selfpriming, with 1/2" I.D. hose connections. Lightweight
and portable, weighing only 20 lbs. |
FEATURES:
● Excellent chemical resistance
● Pumps a wide variety of chemicals
● Tubing and nylon fittings are the only parts of
the unit in contact with materials being pumped
● Self-priming up to 15 ft
SPECIFICATIONS:
| ● Tubing Size: |
1/2" I.D. (12.7 mm) |
| ● Electric motor: |
1/4 HP, 115V AC, 60 cycle,
drip proof, resilient mounted,
48 NEMA frame, close-coupled to pump |
| ● Dimensions: |
10"L x 5-1/2"W x 9-1/2"H |
| ● Approximate Weight: |
20 lbs |
| ●
Chemically resistant vinyl tubing conveys material being pumped |
| ●
Abrasion resistant nylon tube fittings for 1/2" I.D., external
connections |
| ●
Equipped with handle for easy carrying |
| Flow and Head Capacities: |
Total Head PSI |
|
| Lbs/Square Inch |
Ft/Water |
GPM |
| 0 |
0 |
2.2 |
| 5 |
12 |
2.1 |
| 10 |
23 |
2.0 |
| 15 |
35 |
1.9 |
| 20 |
46 |
1.7 |
| 25 |
58 |
1.4 |
| Part Number |
Description |
Units |
| J004-002 |
MINI PERISTALTIC PUMP |
EACH |
|
| |
|
|
 | |
 |
|
 |
|
