| The CON-TROL-CURE® OEM Compact Peristaltic Pump is offered to add to your full production line. |
 |

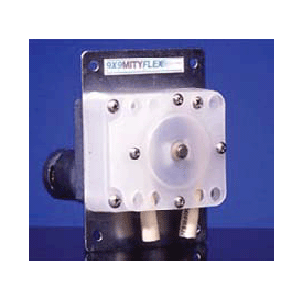

OEM COMPACT PERISTALTIC
PUMP
The CON-TROL-CURE® OEM Compact Peristaltic Pump is offered to add to your
full production line. It is compact and flexible to fit into many built-in
specifications. Self-priming up to 29 ft, can be run dry continuously and
is non-siphoning. |
SPECIFICATIONS:
| ● Complete Components: |
Drive and pump head |
| ● Tubing Size: |
1/4" I.D. (6.3 mm) |
| ● Operating Pressure: |
Minimum of 0-20 PSI (continuous)
Maximum of 25-35 PSI (intermittent) |
| ● Special Design: |
Lightweight, reversible, in-line capability |
| ● Enclosure: |
Equipped with 18 gauge zinc-plated steel mounting
plate |
| ● Flow Rate Range: |
3 mL/min - 987 mL/min |
| ● Max Operating Temperature: |
175°F |
| ● Electrical: |
12/24V DC |
| ● Viscosity: |
Can handle up to 10,000 cPs, particulates and low
shear |
| ● Weight: |
8 lbs |
| ● Dimensions: |
5.12"W x 3.74"H x 4.55"D |
| ● Options: |
Dual pump heads |
IMPORTANT NOTE: Compact peristaltic pumps
should only be used with non-flammable materials.
| Part Number |
Description |
Units |
| J432-003 |
OEM PERISTALTIC PUMP |
EACH |
|
| |
|
|
 | |
 |
|
 |
|
