| 1/2" NPT threaded connections, Full flow, 90° rotation from off to full flow |
 |

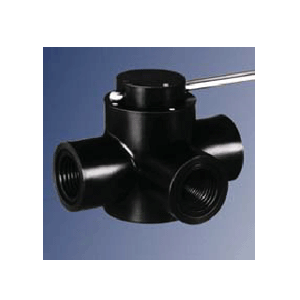

POLYPROPYLENE ELLIPTIC
HAND VALVES
The unique design of the Elliptic Hand Valves offers unmatched suitability
for a broad range of applications in fluid handling systems, especially
where a high degree of resistance to corrosion and contamination is required.
FEATURES:
● 1/2" NPT threaded connections
● Full flow
● 90° rotation from off to full flow |
● Dynamic sealing effect
● In-line servicing and cleaning
● Pressure rating: 80 PSI @
73°F water
● Compact and lightweight
● Individually tested
The versatile 4 position/3-Way Elliptic Valve may be used as:
1. 1 inlet to either of 2 outlet
2. 1 inlet to both (2) outlets
3. Either of 2 inlets to 1 outlet
4. Both (2) inlets to 1 outlet
| Part Number |
Description |
Units |
| J004-037 |
VALVE 2-WAY |
EACH |
| J004-038 |
VALVE 3-WAY, 2 POSITION |
EACH |
| J004-039 |
VALVE 3-WAY, 4 POSITION |
EACH |
|
| |
|
|
 | |
 |
|
 |
|
