| The aluminum housing can withstand exposure to oven temperature as well as intense vibration and shock. |
 |

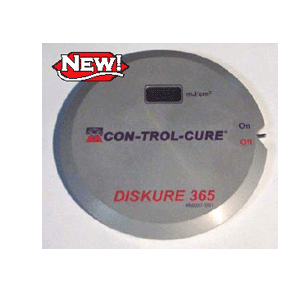

DISKURE 365 RADIOMETER
The CON-TROL-CURE® DISKURE 365TM radiometer is our most economical passthrough
radiometer for measuring UV radiation levels in high intensity, high energy
curing environments. It is a UV dose measuring instrument small enough (5.5"
diameter x .5" height) for use in most UV curing ovens. A sensor on
one side is exposed to the radiation and the other side contains a digital
LCD which displays direct energy readings in mj/ cm2.
The aluminum housing can withstand exposure to oven temperature as well
as intense vibration and shock. This durability makes the DISKURE 365™ ideal
for measuring
UV light energy in harsher environments such as photosensitive resist exposure
systems, web processing equipment, print plate exposure systems and most
UV curing ovens. Special filters and photodiodes absorb the visible as well
as the IR portion of the light, so that measurements are made only on the
required spectral region. After exposure, the radiometer’s LCD shows the
total UV measured in mJ/cm2 to which the unit was exposed. |
SPECIFICATIONS:
● Weight: 500 g
● Spectral Range: 250-410nm
● Accuracy: +/-10%
● Measuring Range: 0-5,000mW/cm2
● Heat Resistance: 70°C (long exposure duration)
● Calibration Requirements: Every 12 months
depending on use (average use: once a day; heavy: 3-5 times/day)
| Part Number |
Description |
Units |
| M007-091 |
DISKURE 365™ |
EACH |
|
 |
|
| |
|
|
 | |
 |
|
 |
|
